Step 2 of 3
Choose design
15 options in Expanded Mesh — pick one, then choose material.

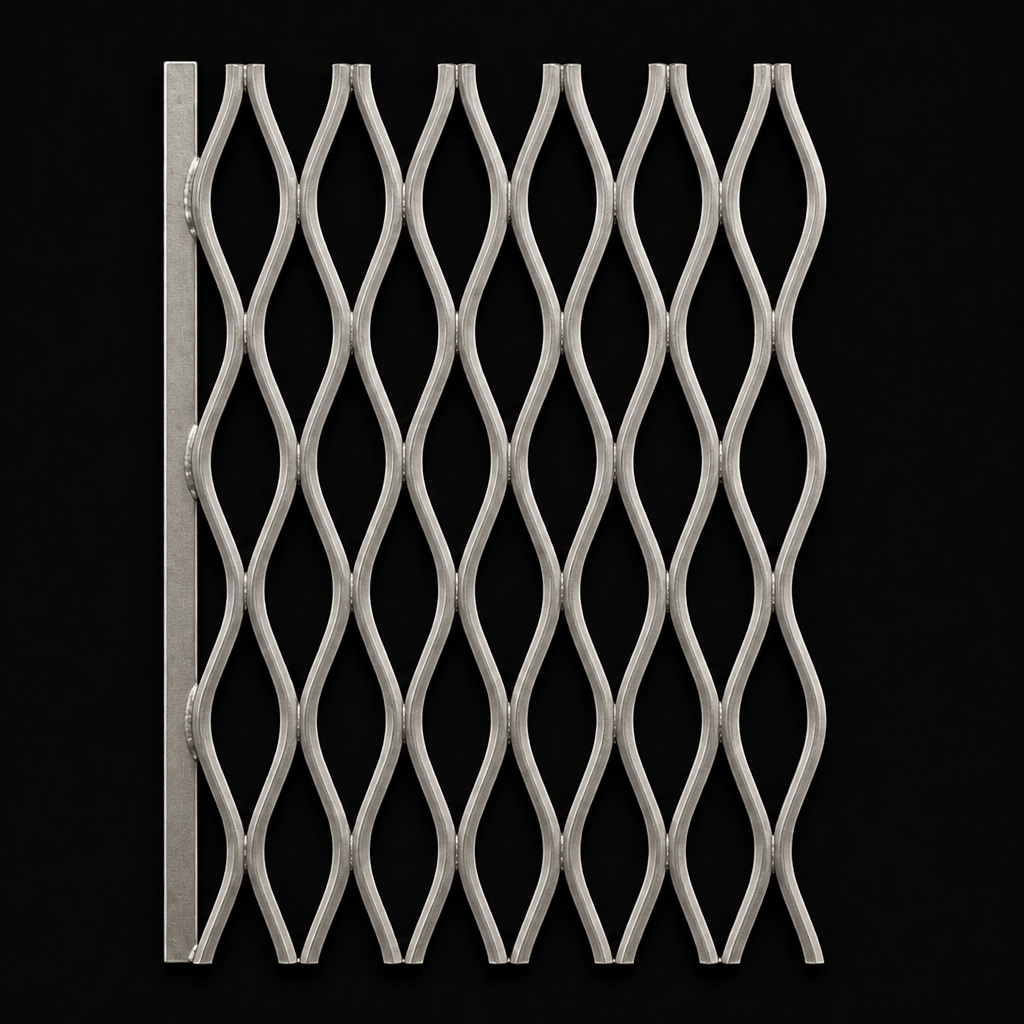

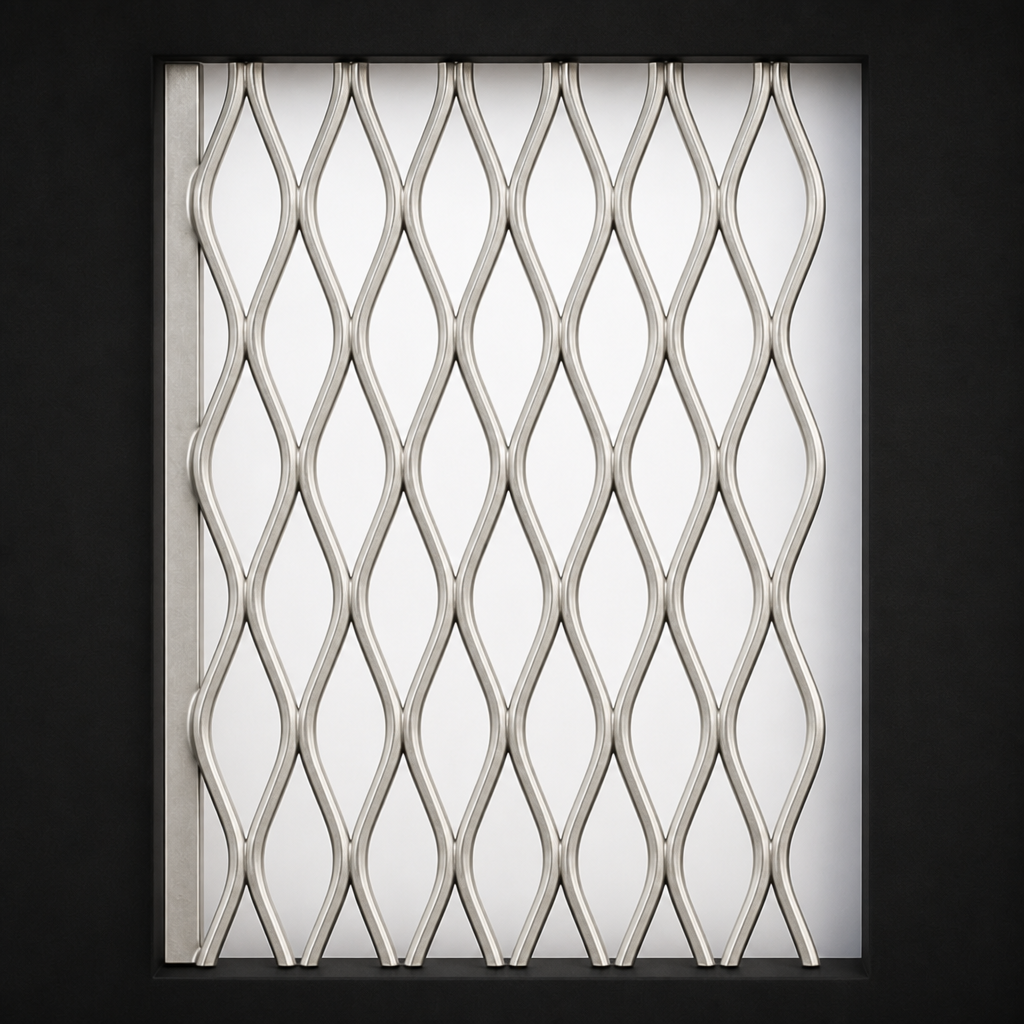

Ariel
SWD 115 mm · LWD 55 mm · Strand 20 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

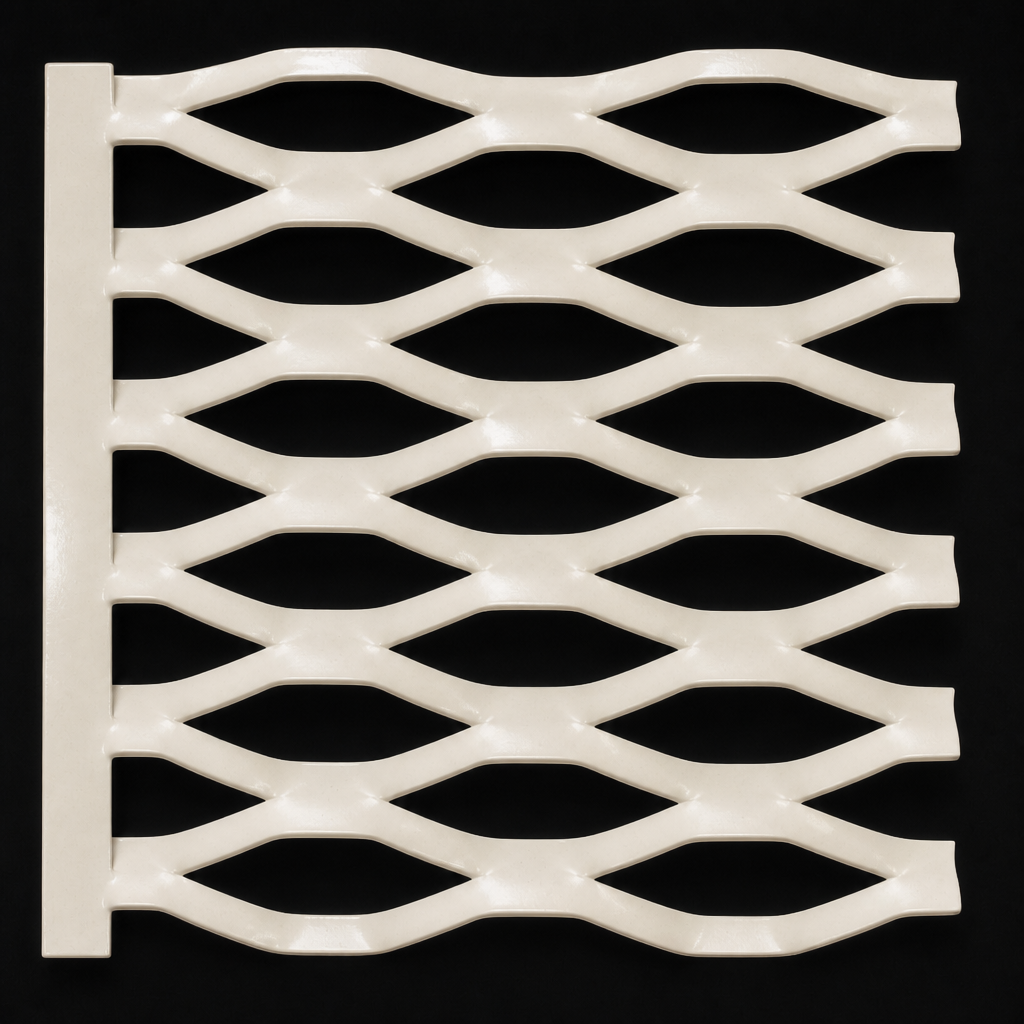

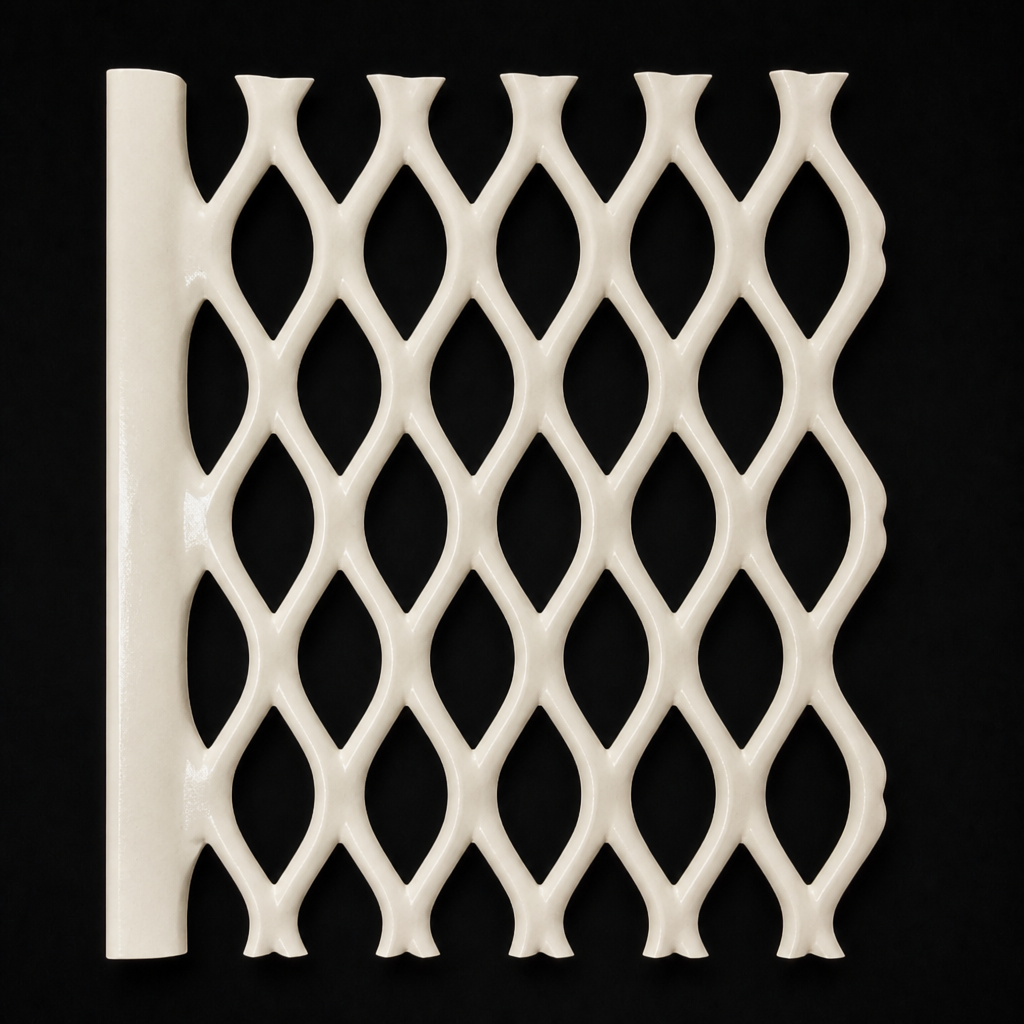

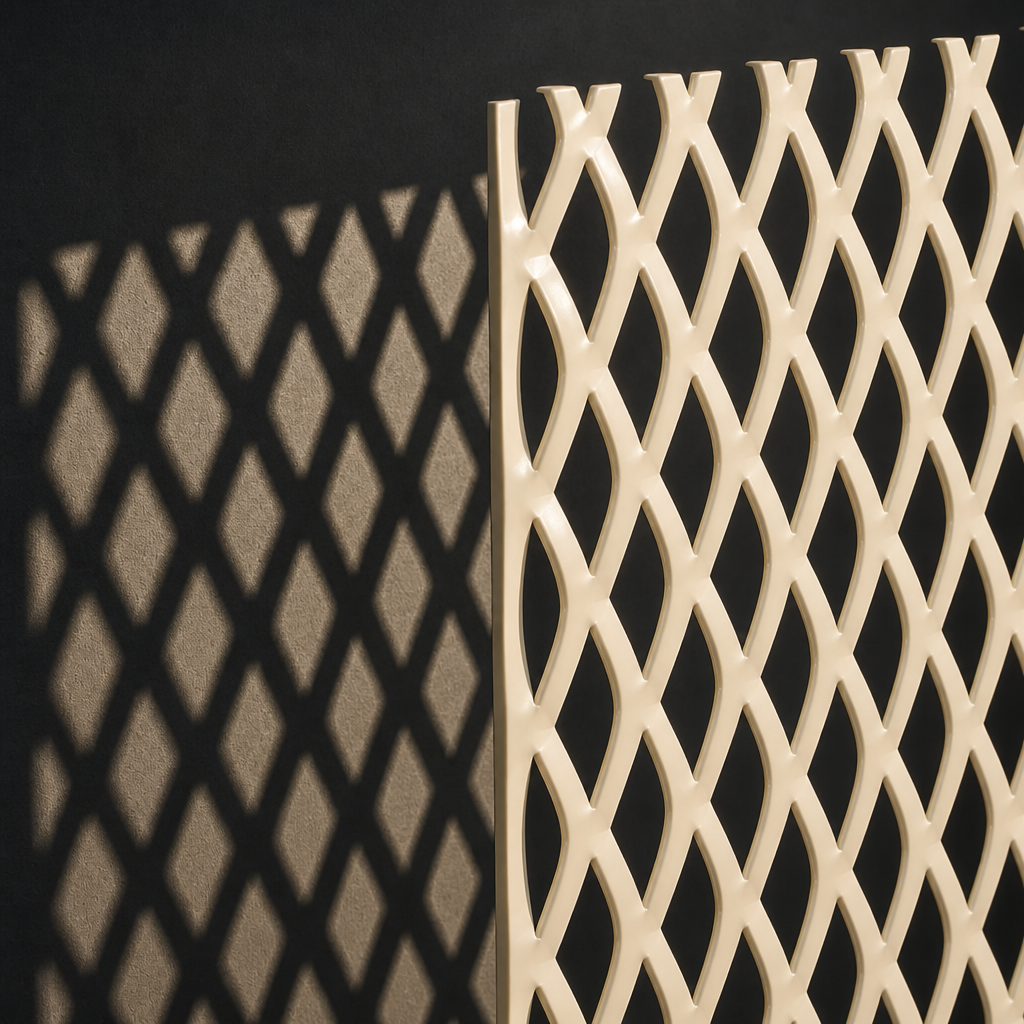

Atlas
SWD 75 mm · LWD 25 mm · Strand 20 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

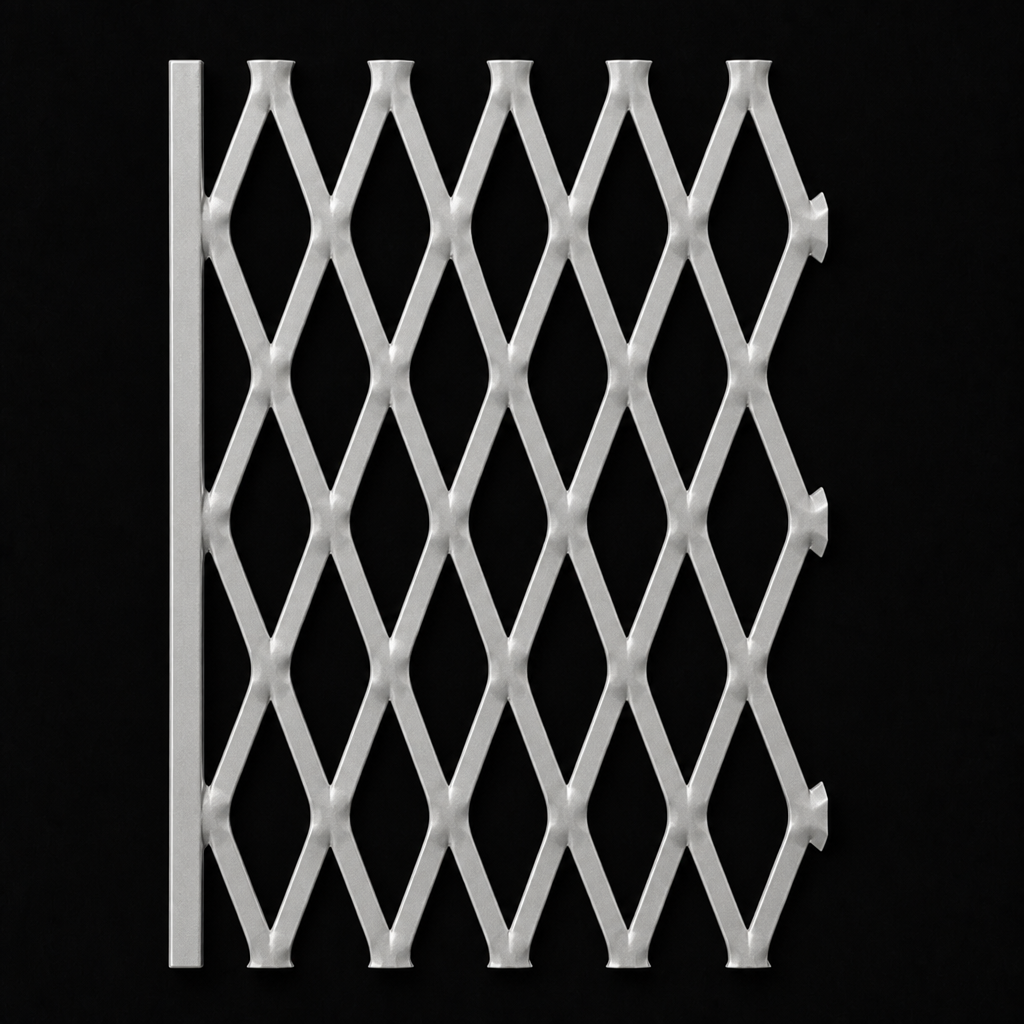

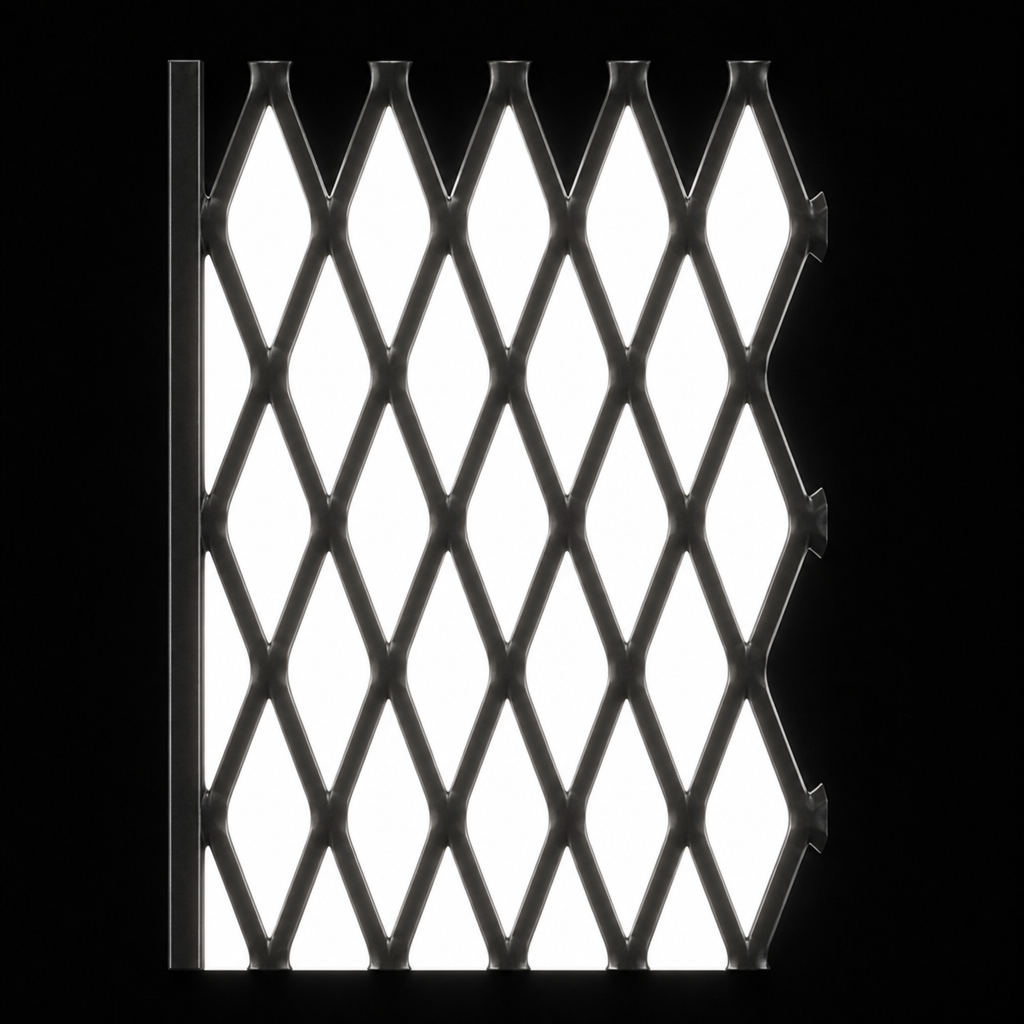

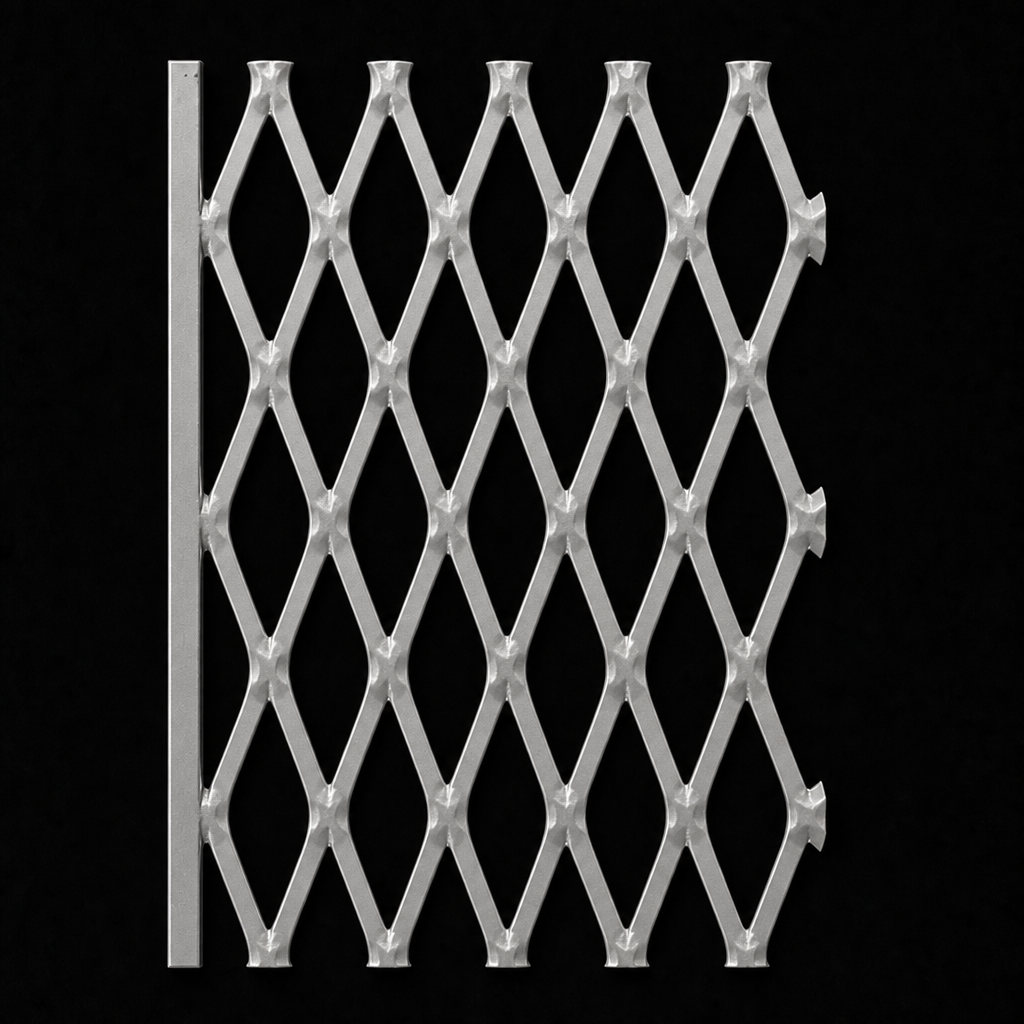

Calypso
SWD 180 mm · LWD 55 mm · Strand 43 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

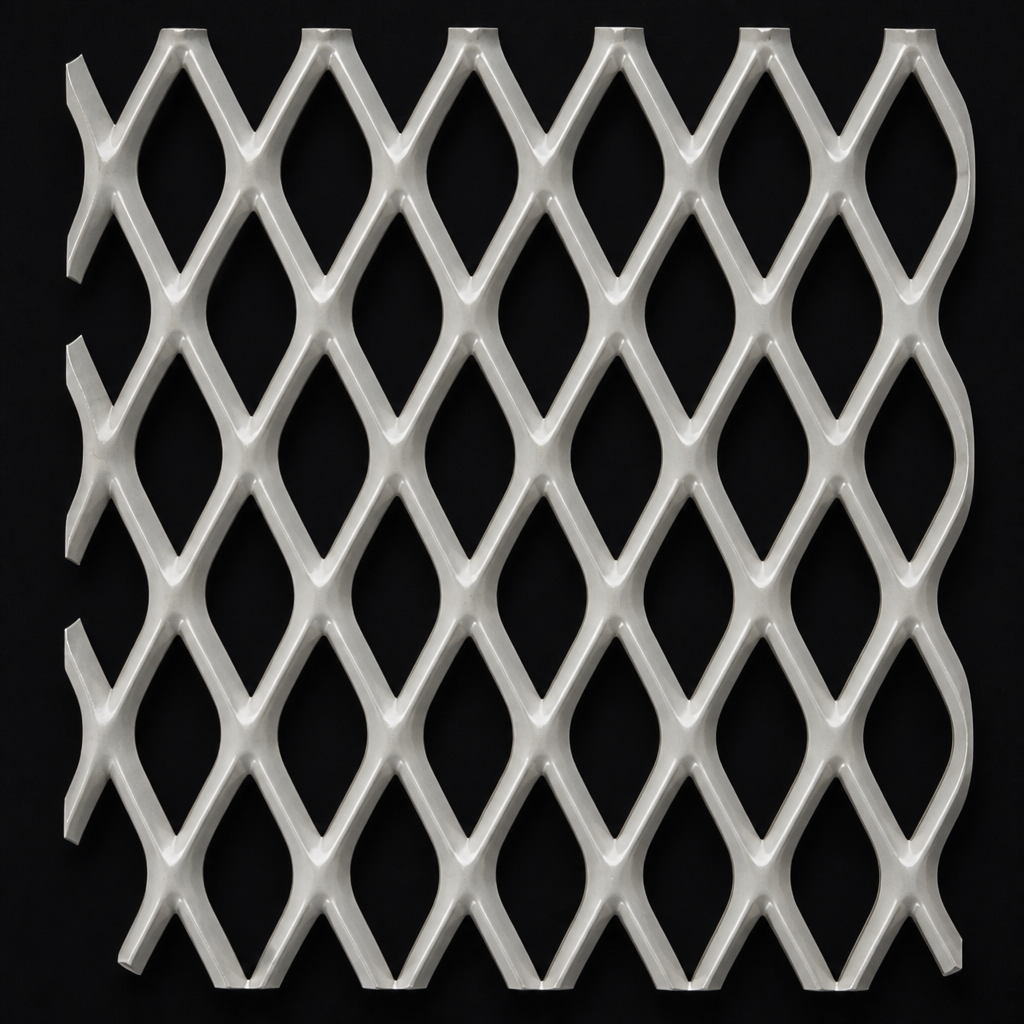

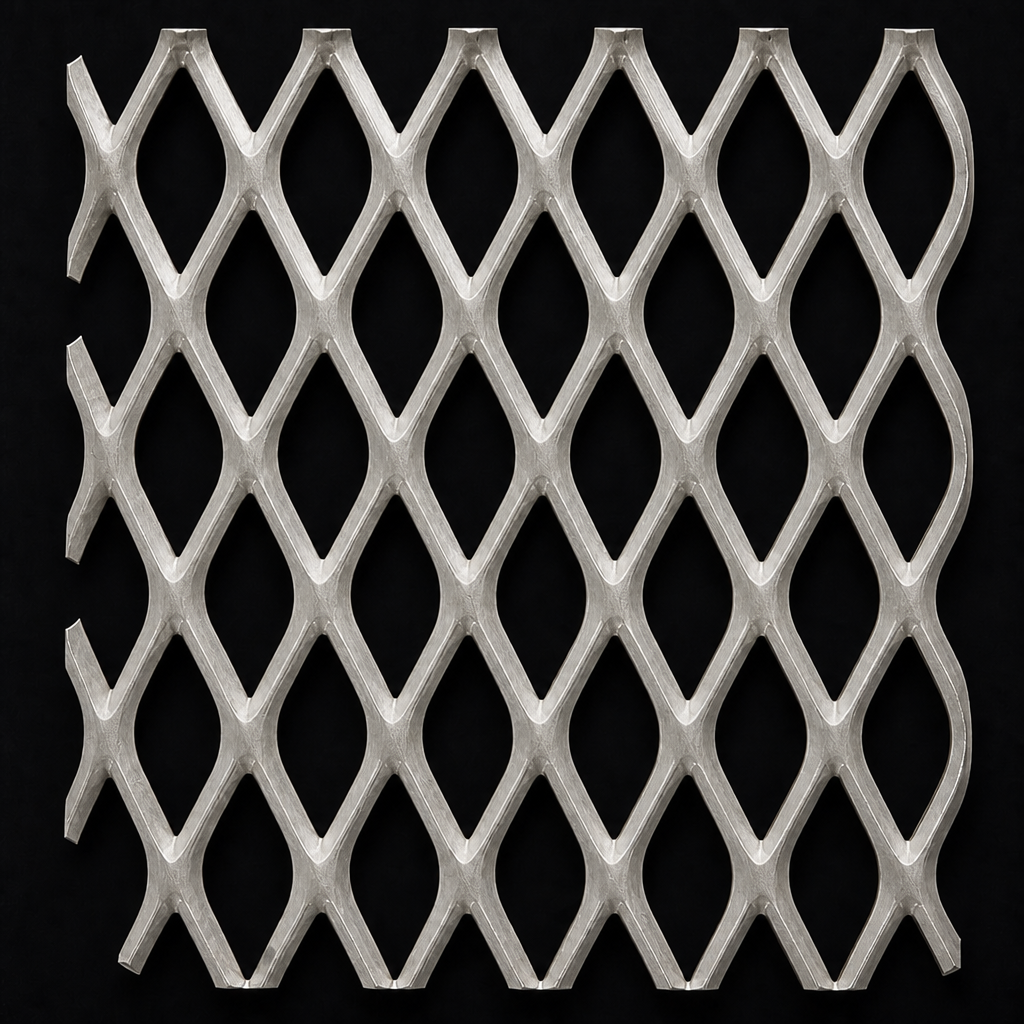

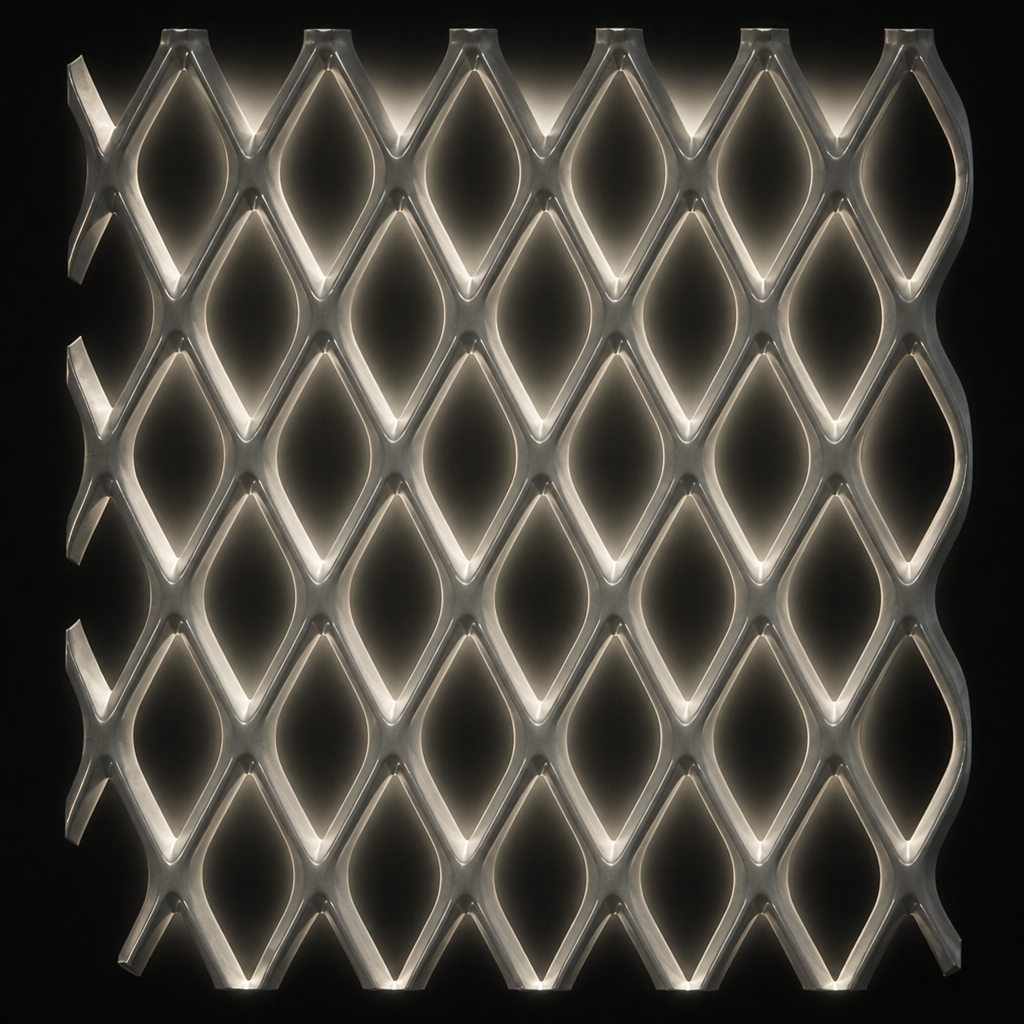

Dione
SWD 115 mm · LWD 55 mm · Strand 20 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

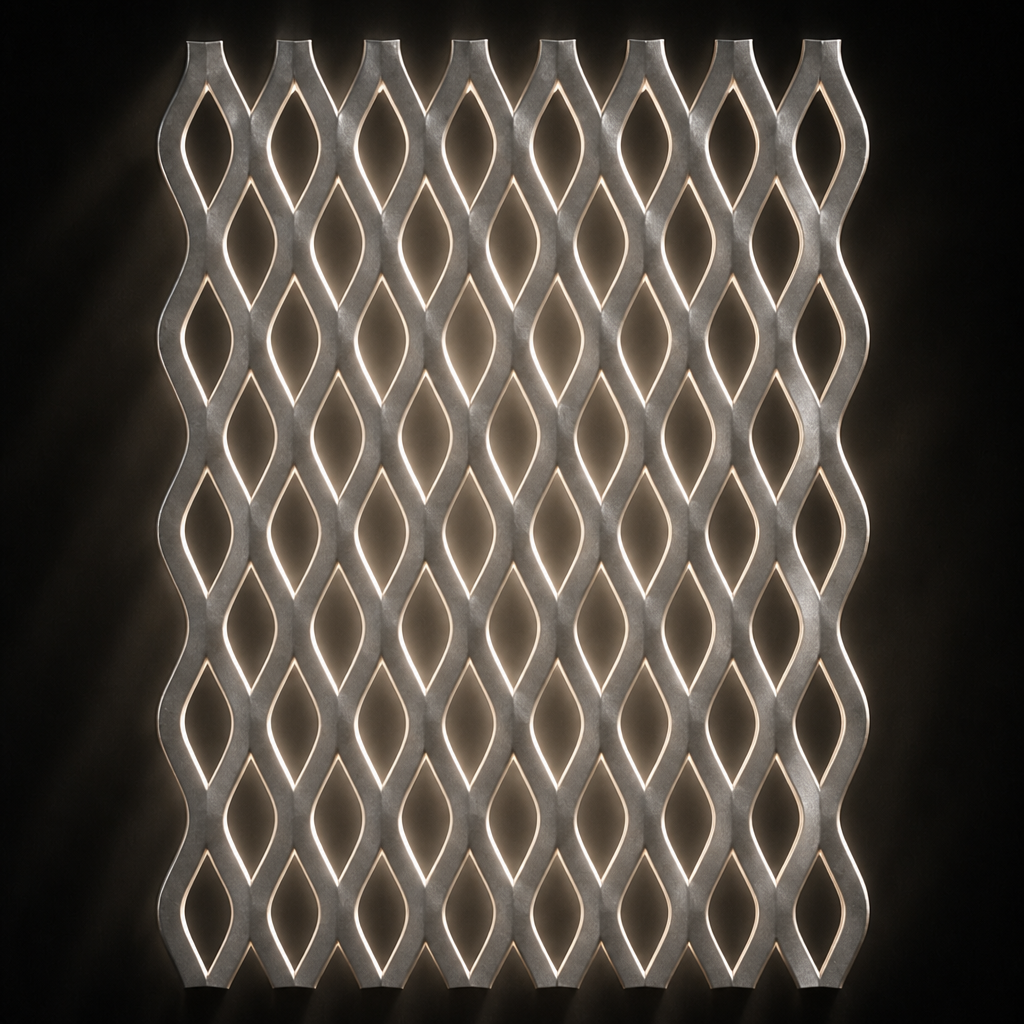

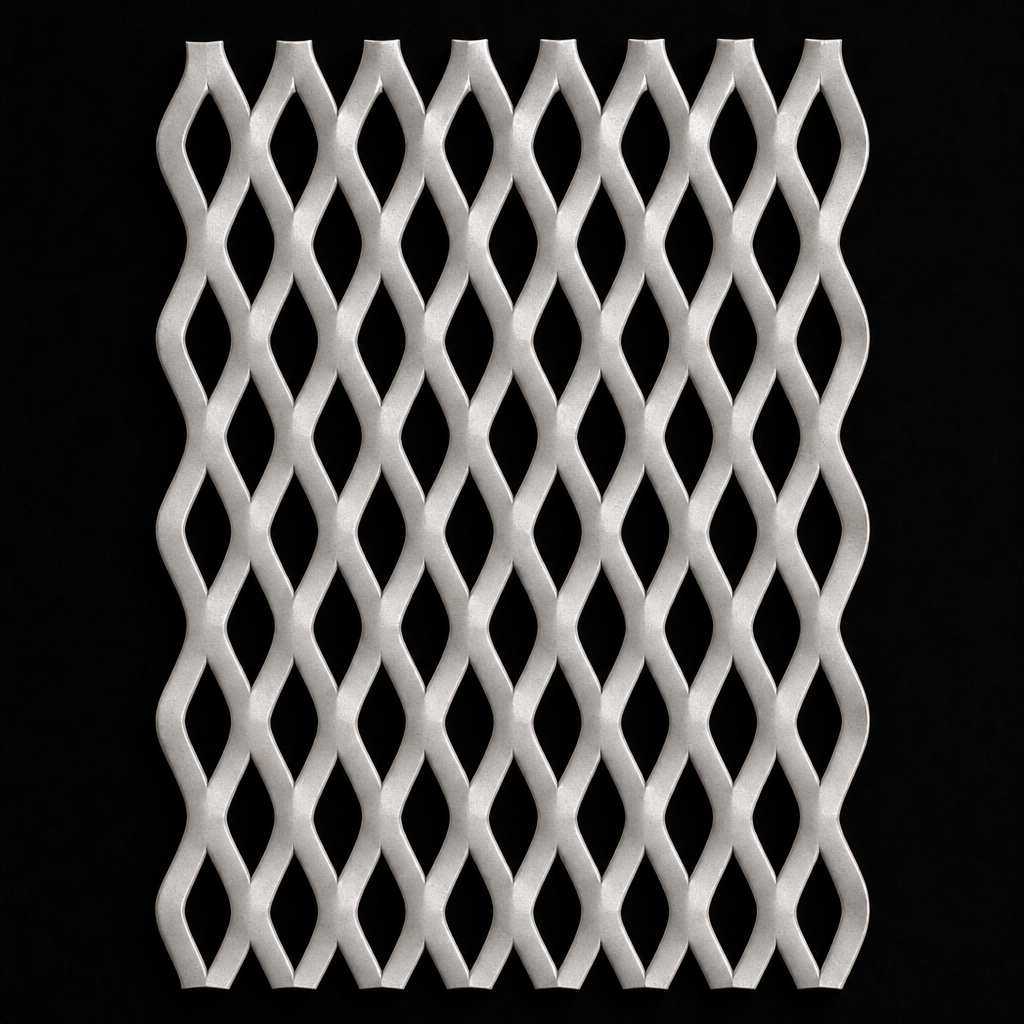

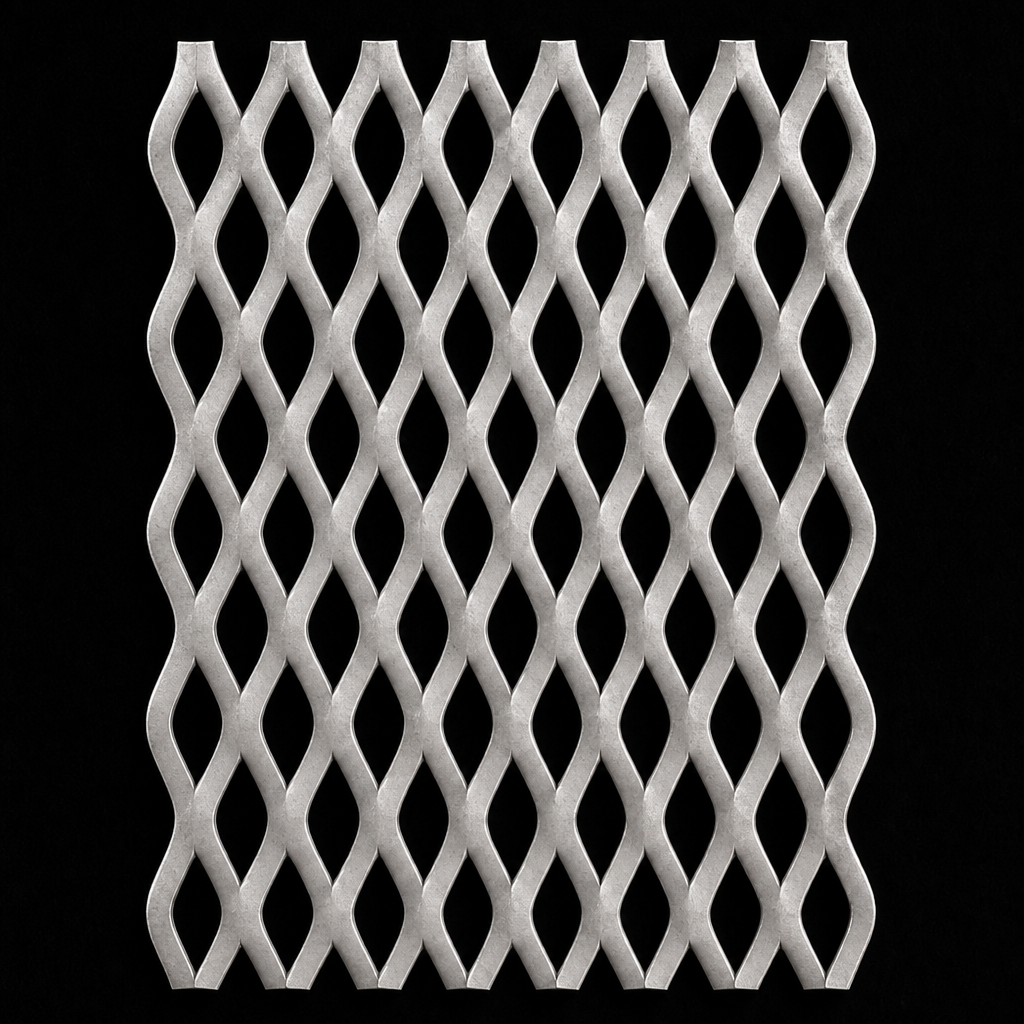

Europa
SWD 65 mm · LWD 30 mm · Strand 20 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

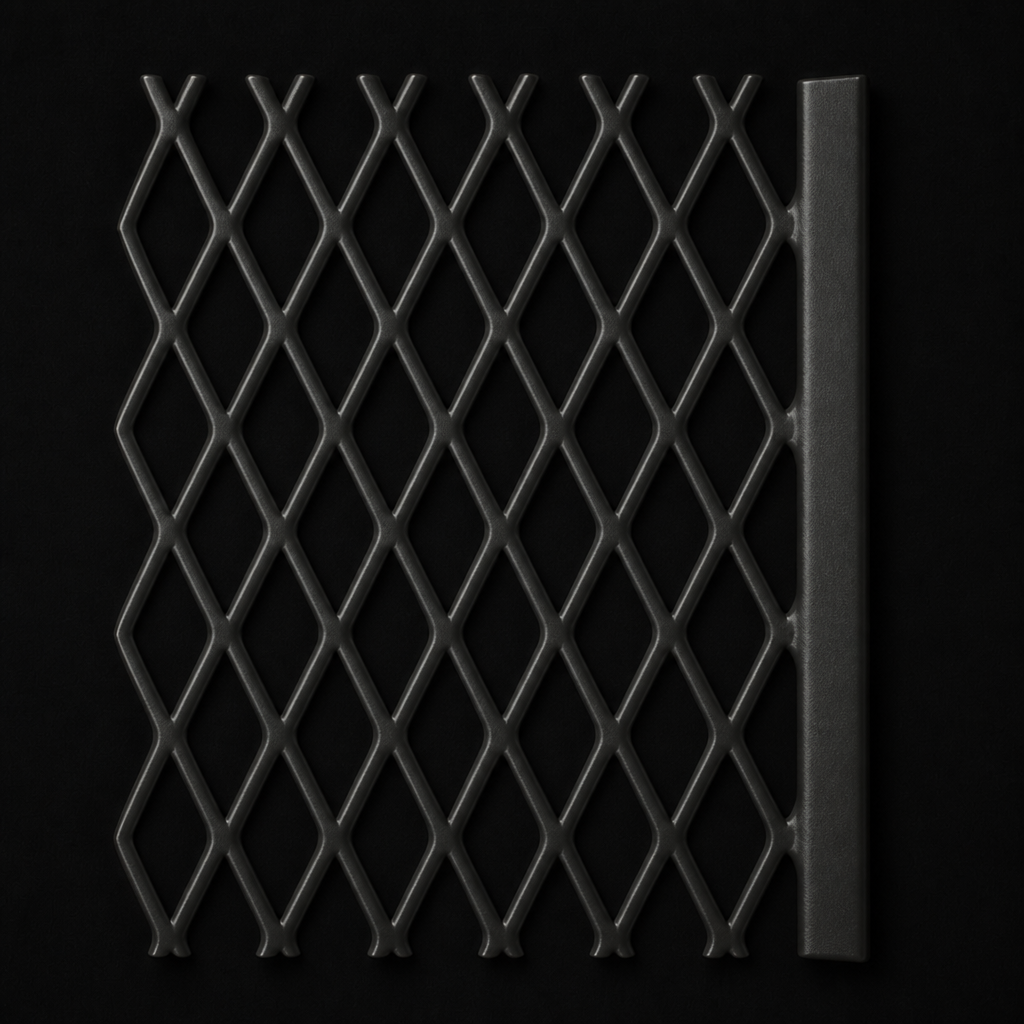

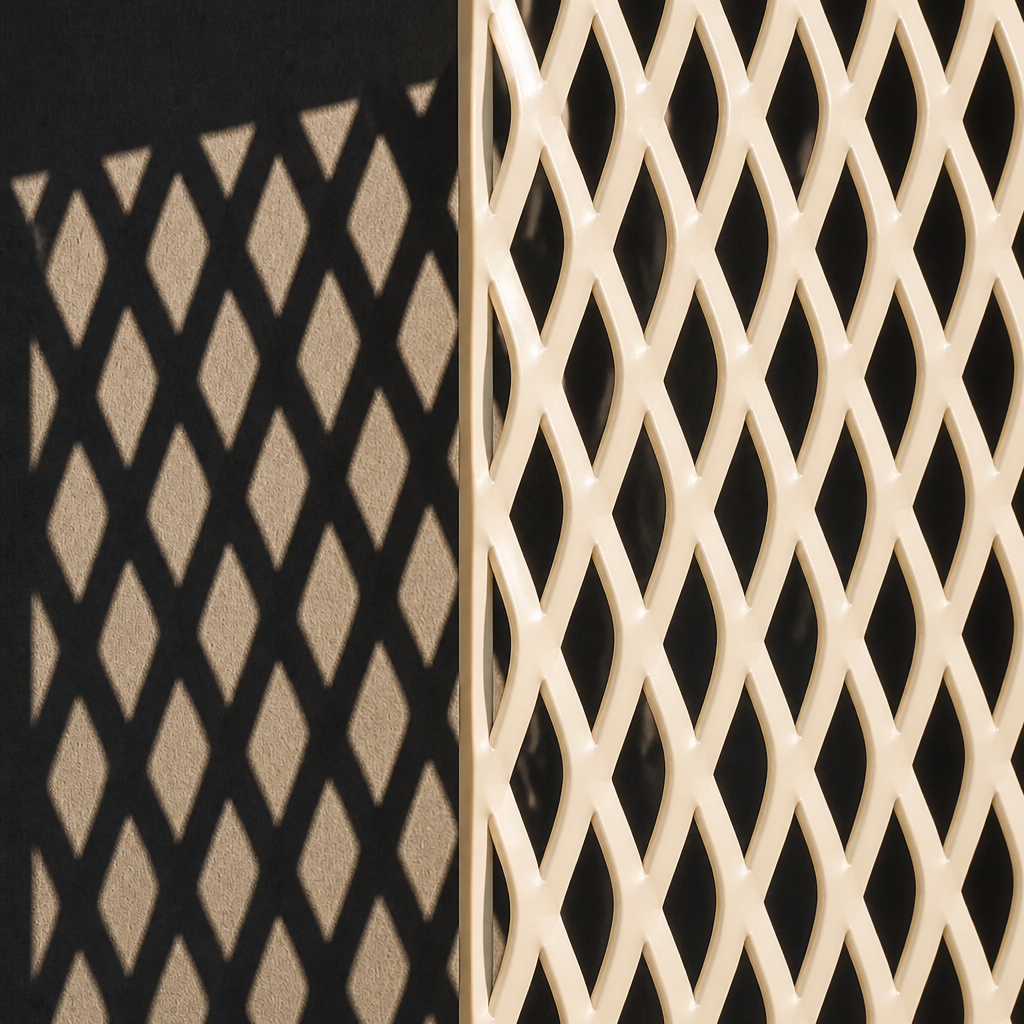

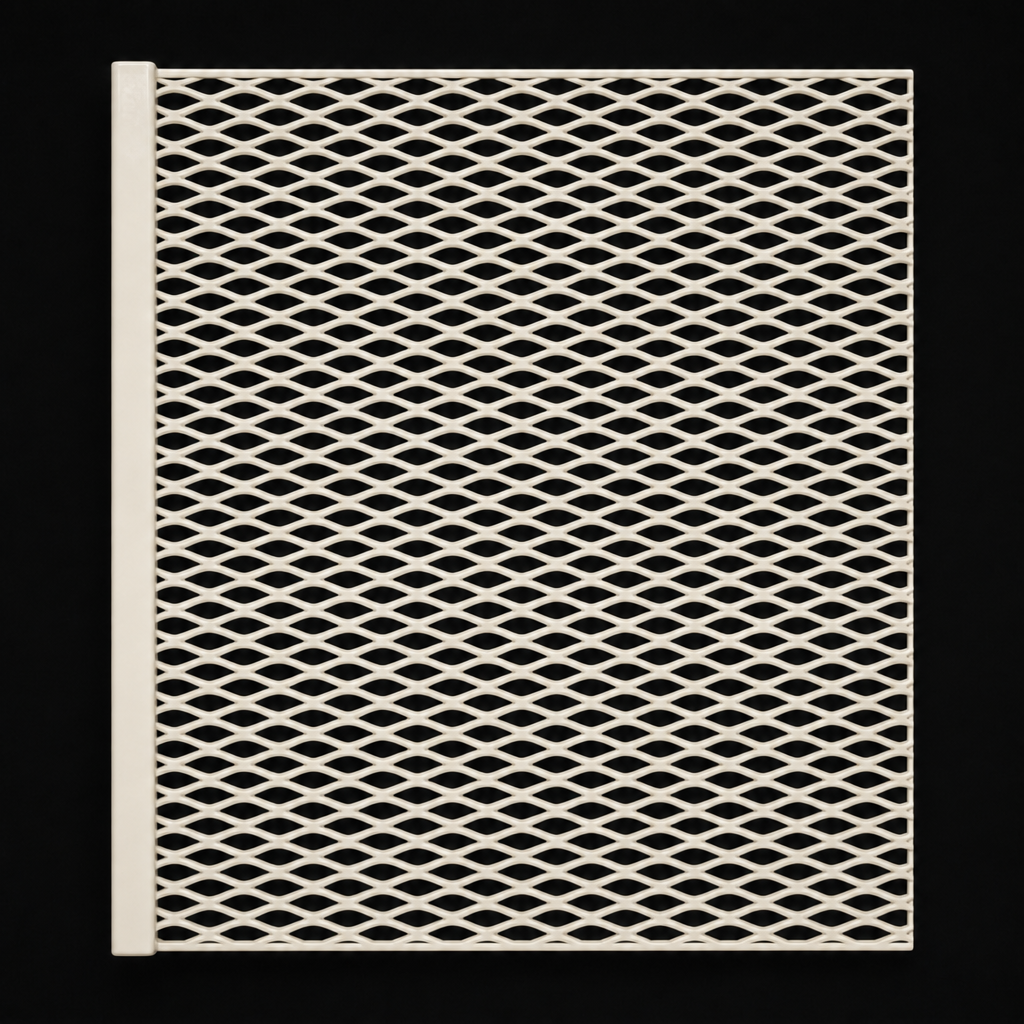

Helene
SWD 40 mm · LWD 15 mm · Strand 4 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

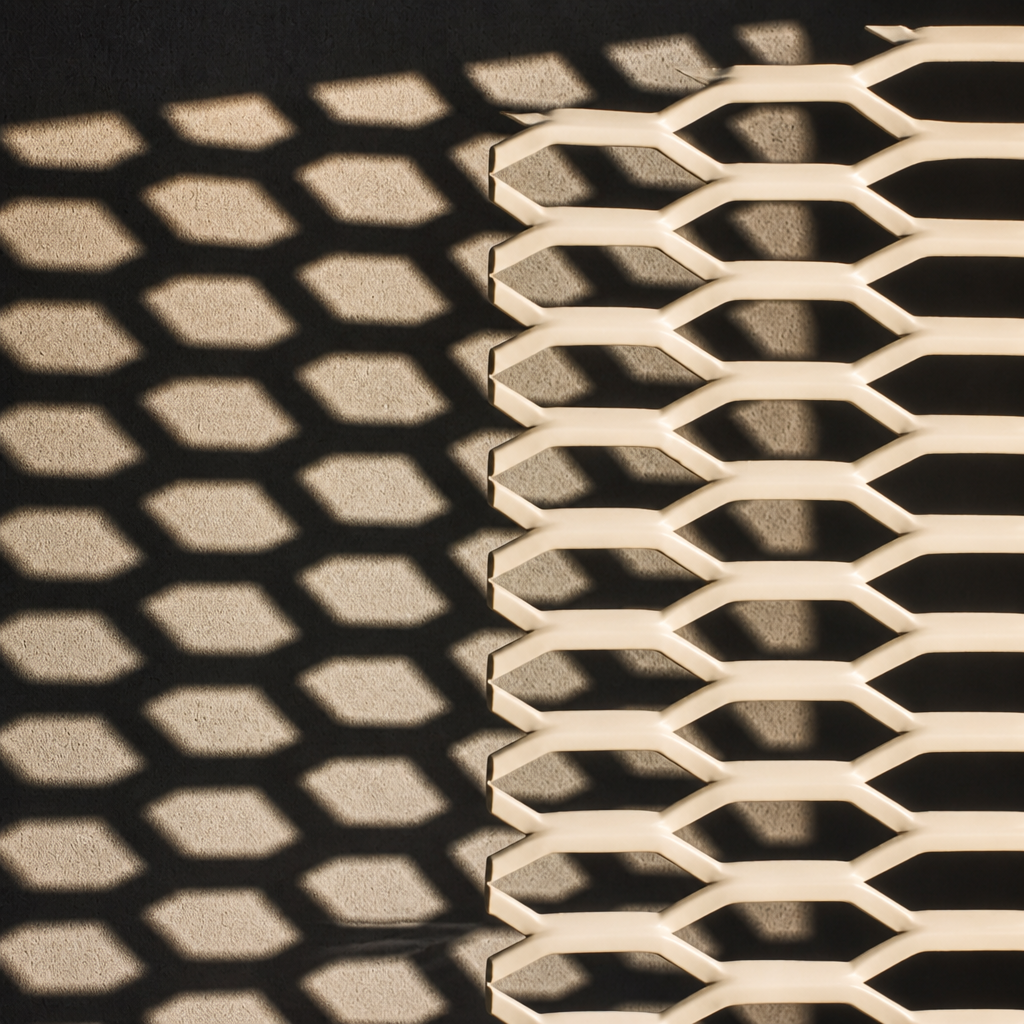

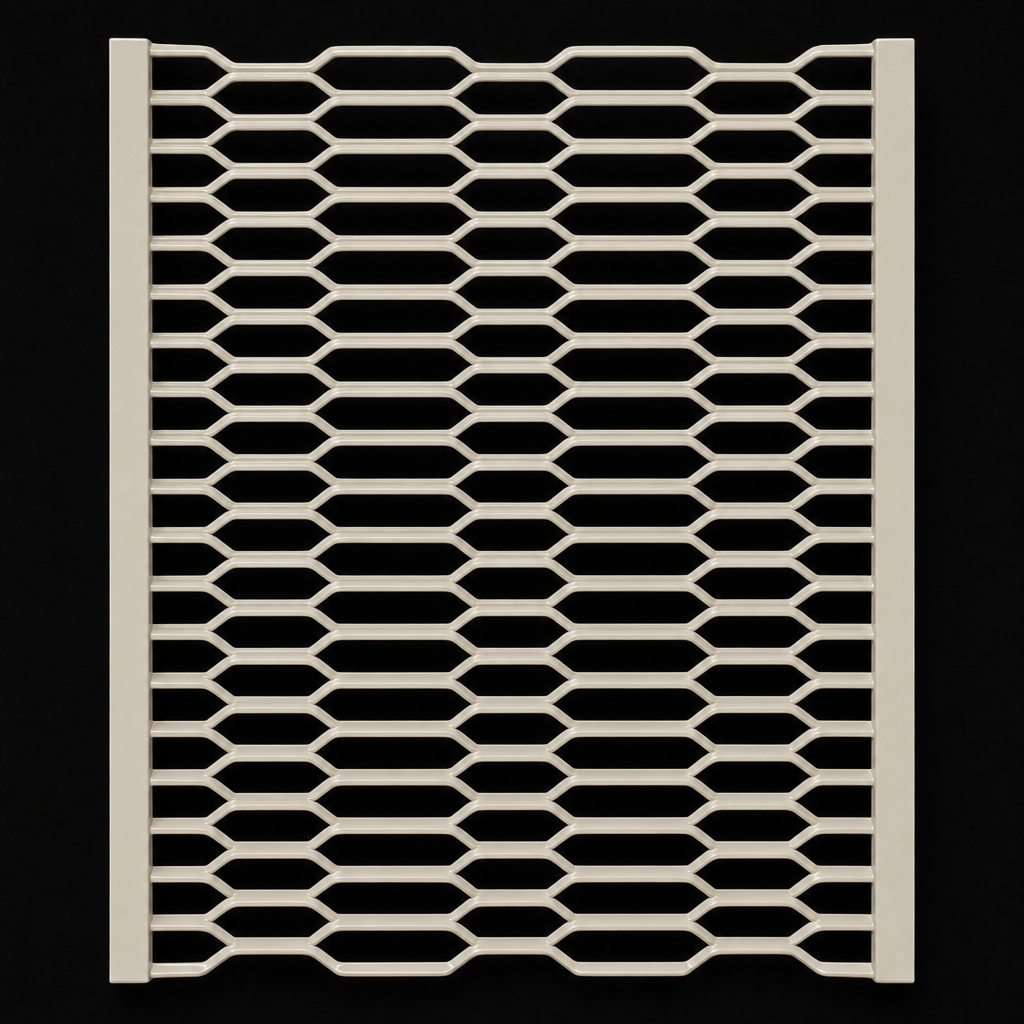

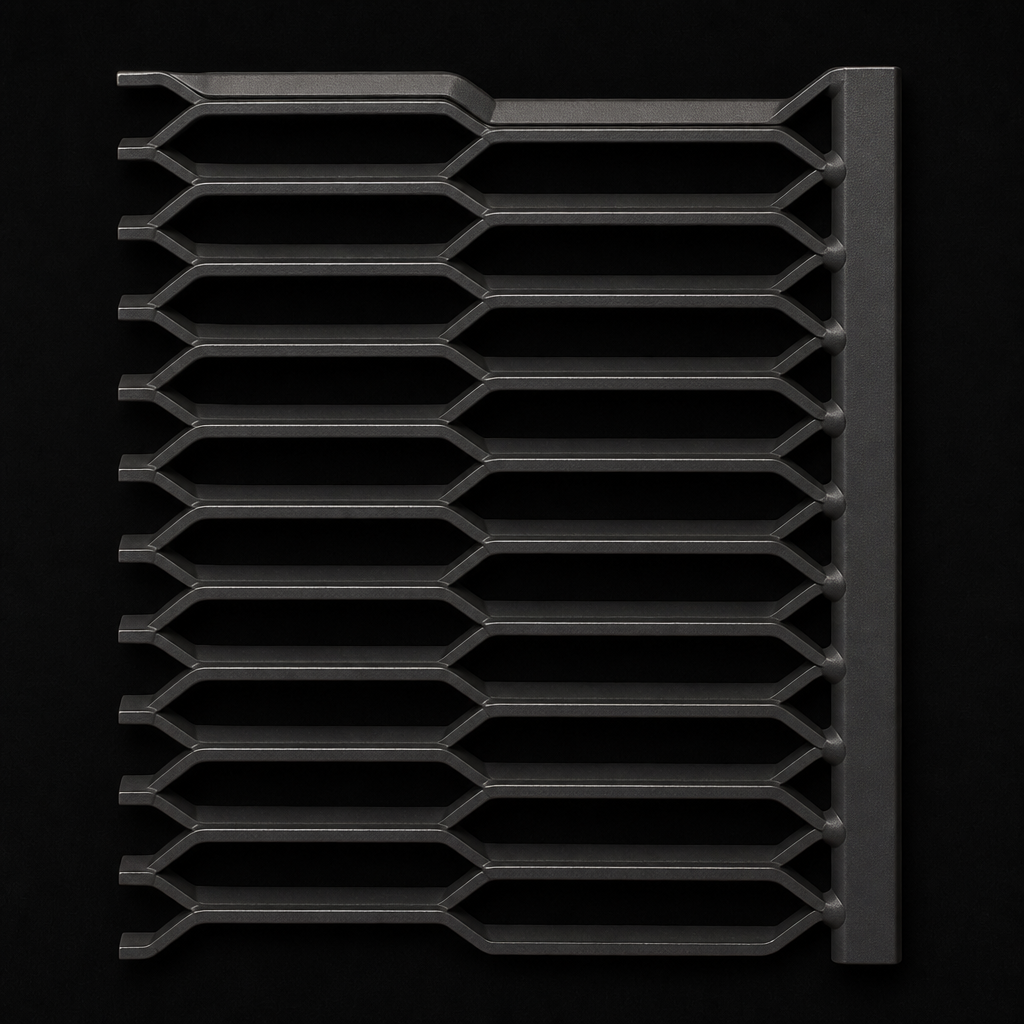

Janus
SWD 80 mm · LWD 15 mm · Strand 5 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

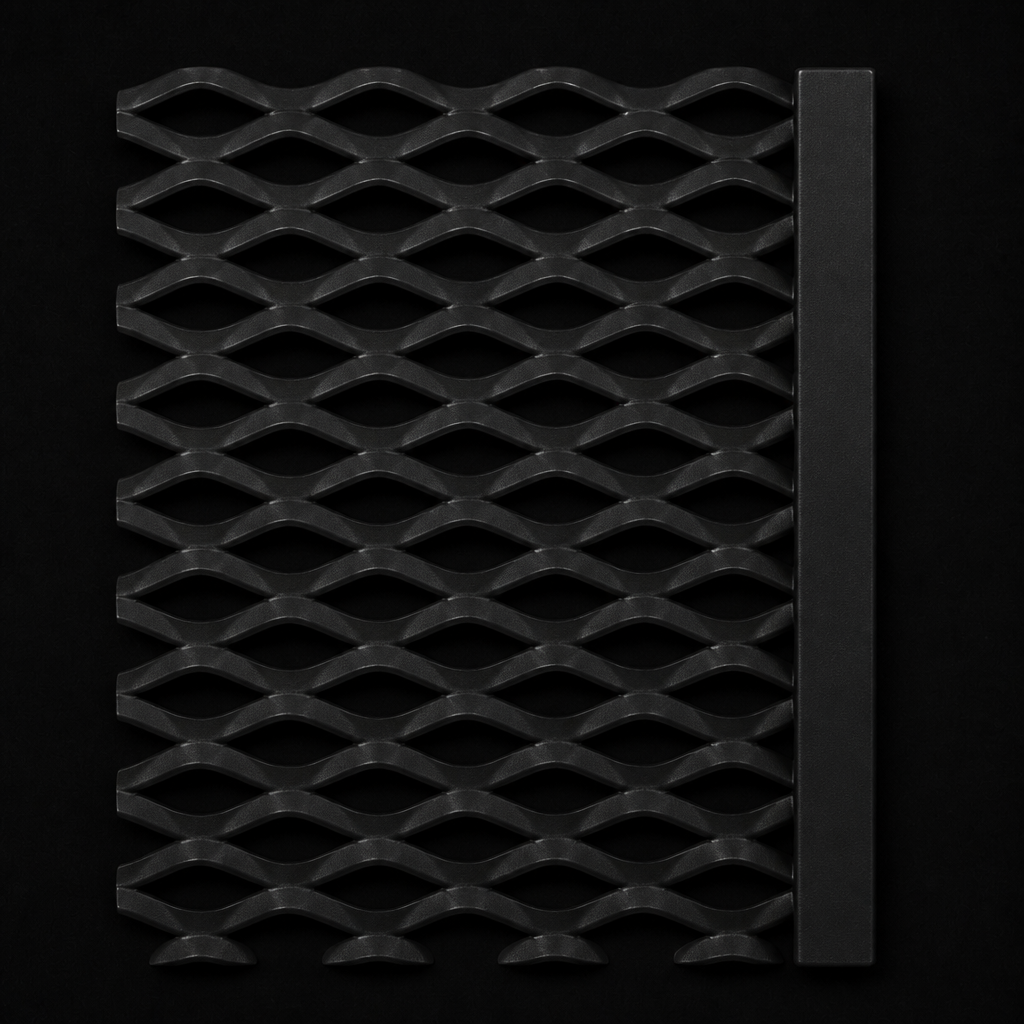

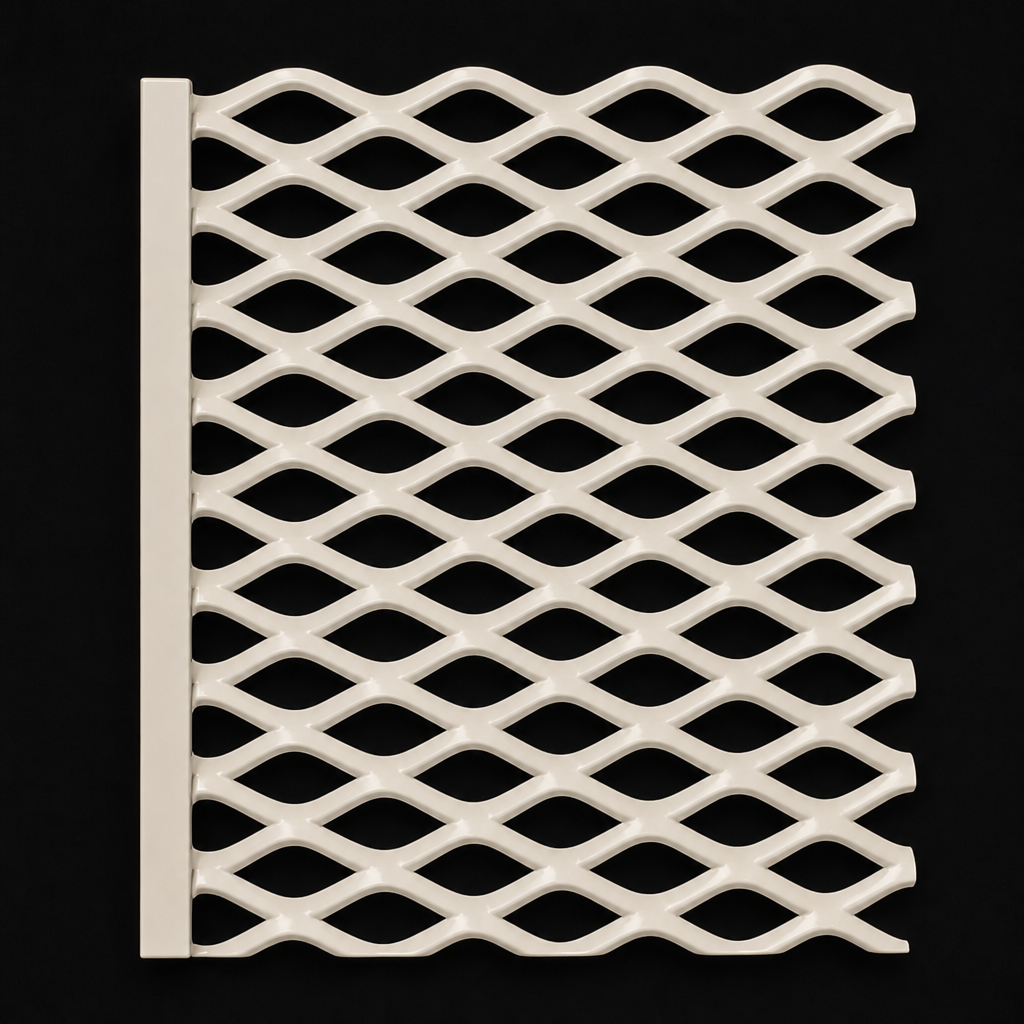

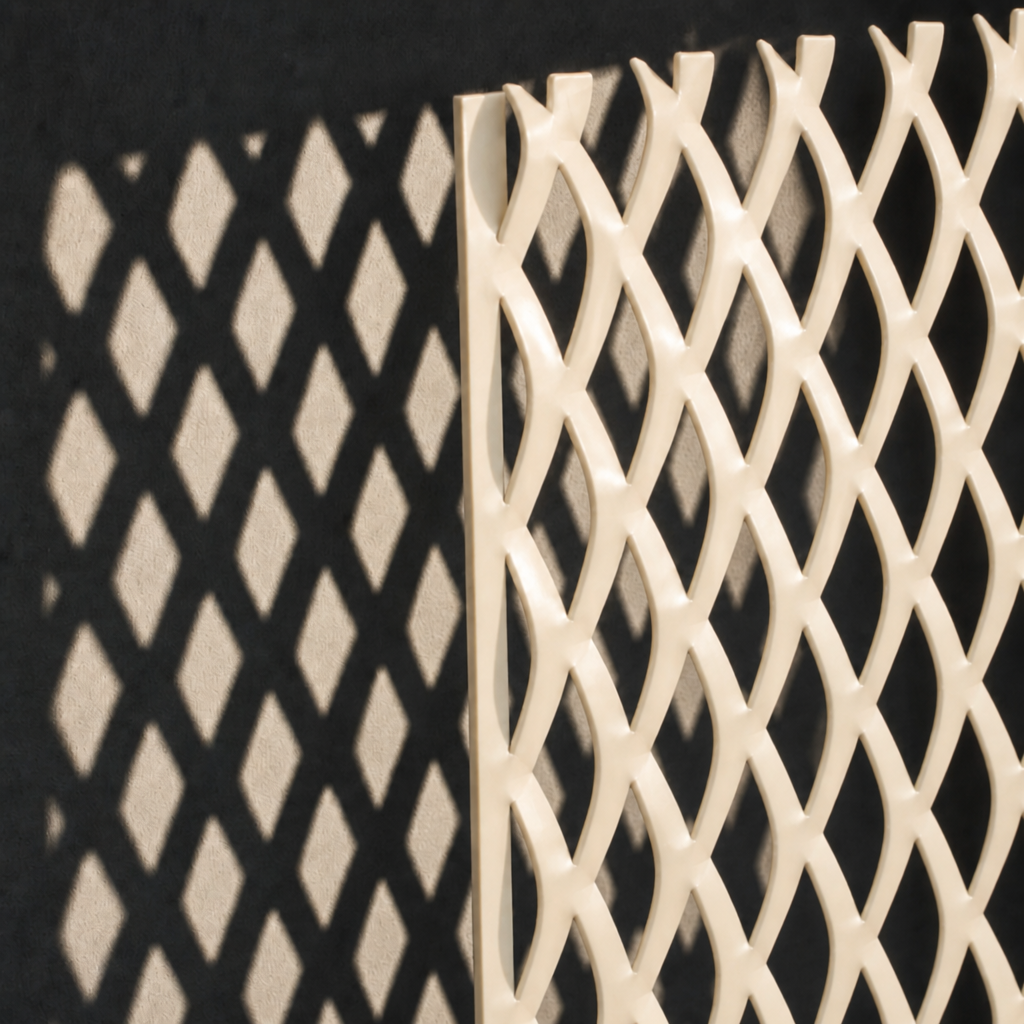

Miranda
SWD 40 mm · LWD 20 mm · Strand 15 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

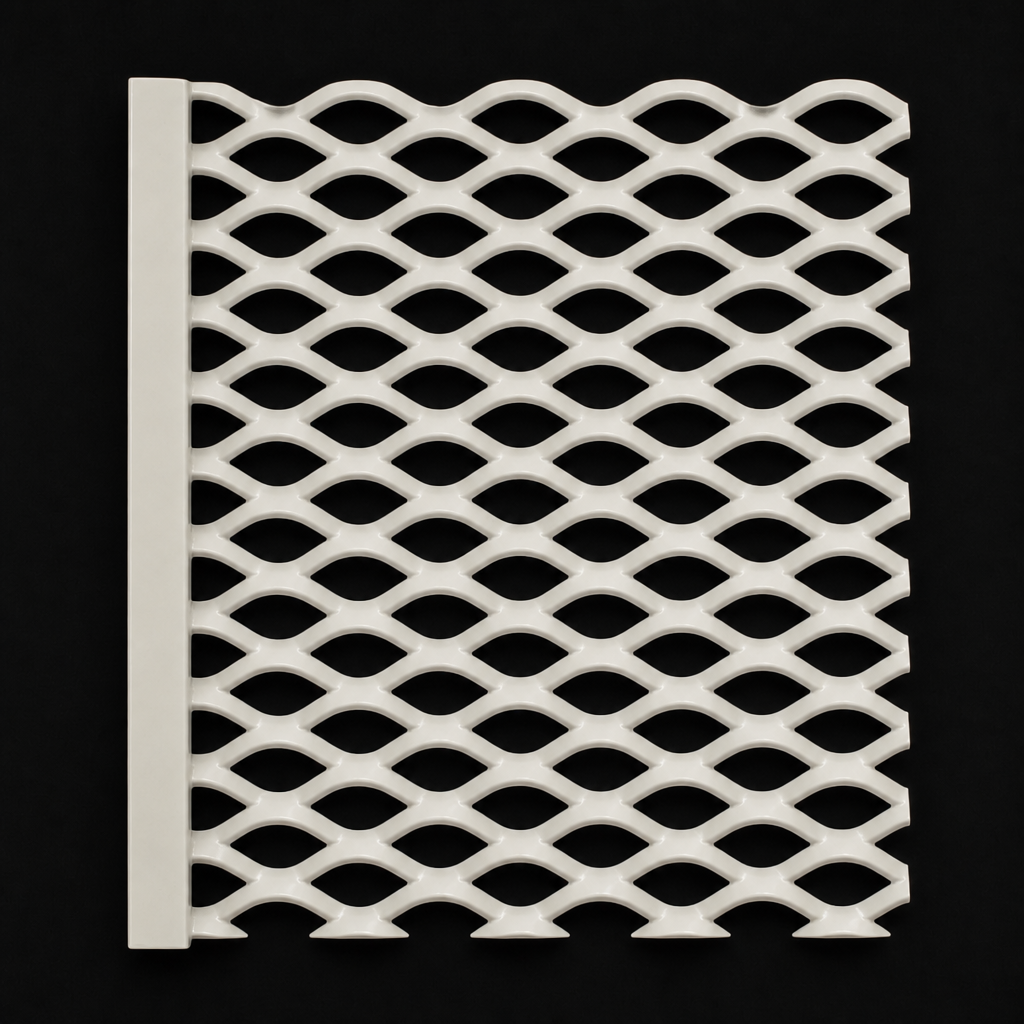

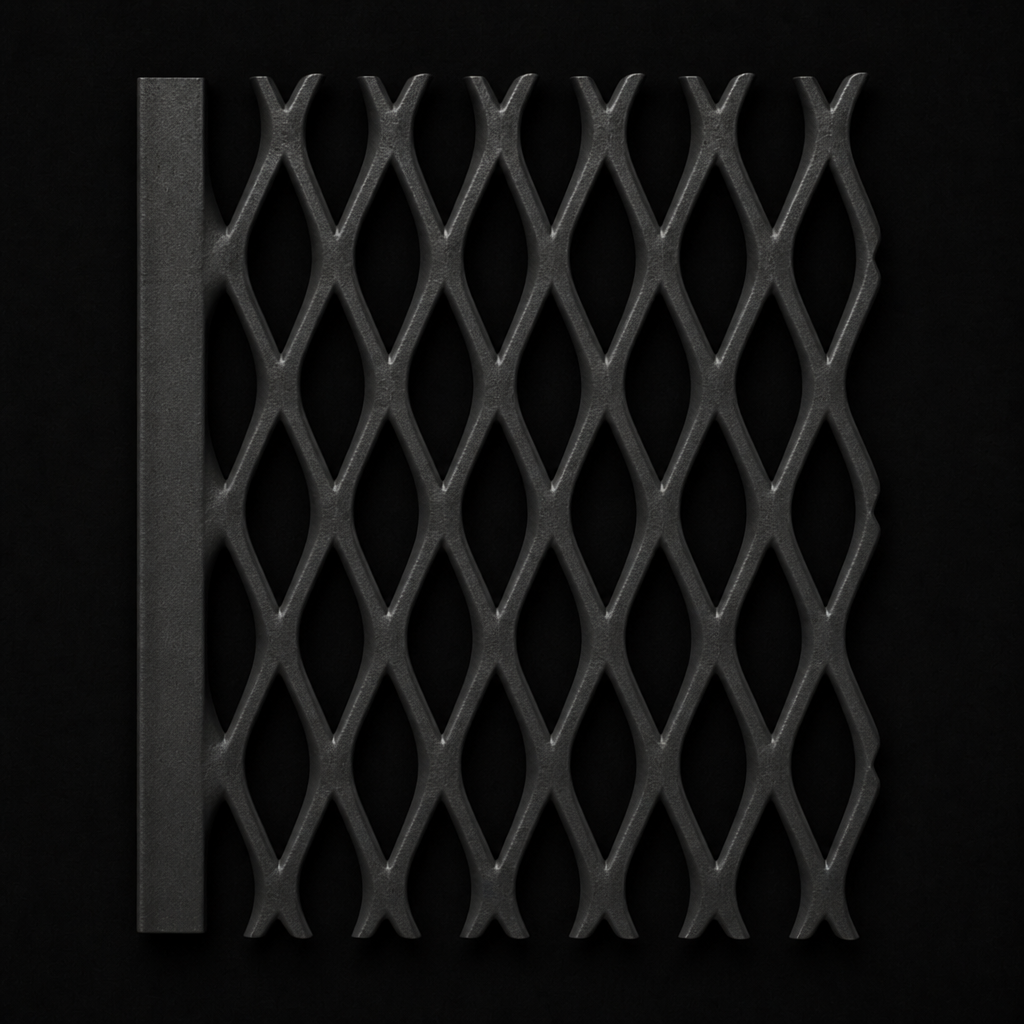

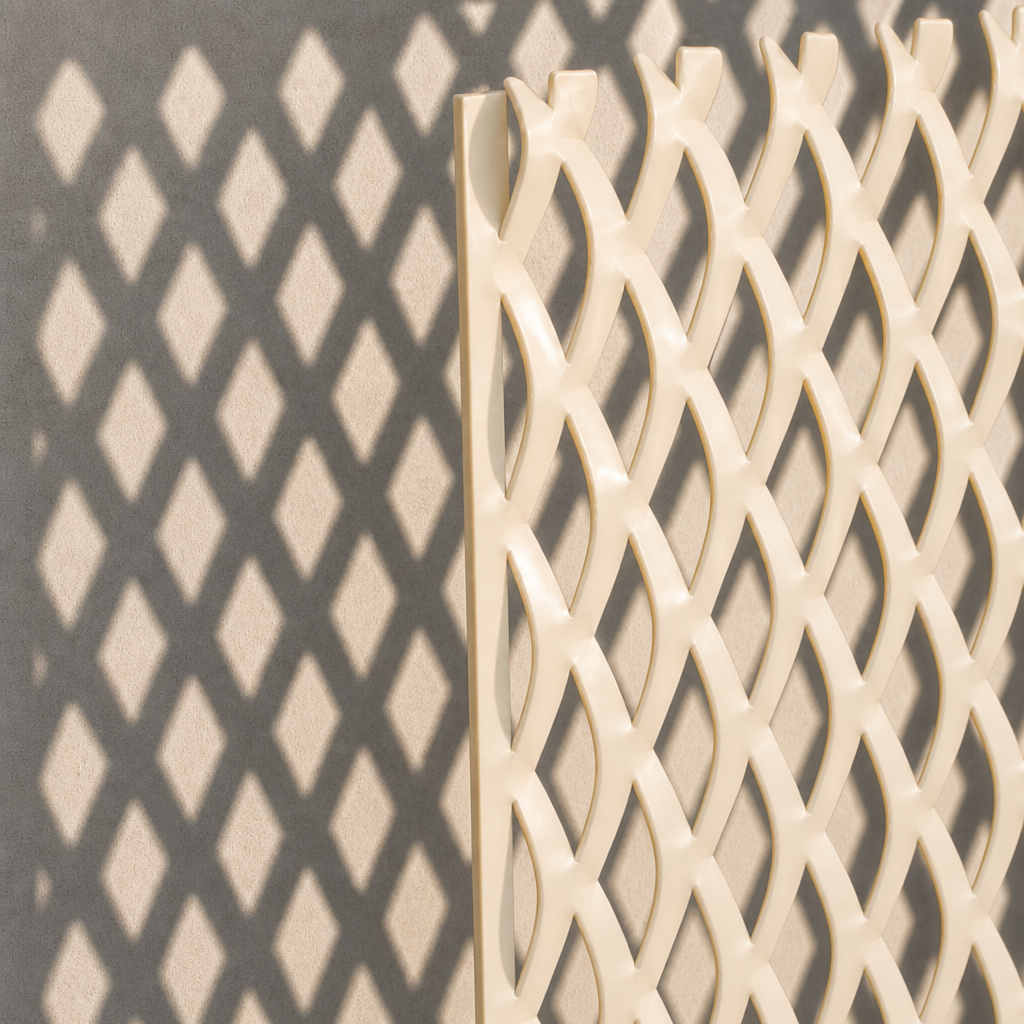

Pan
SWD 25 mm · LWD 15 mm · Strand 12 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

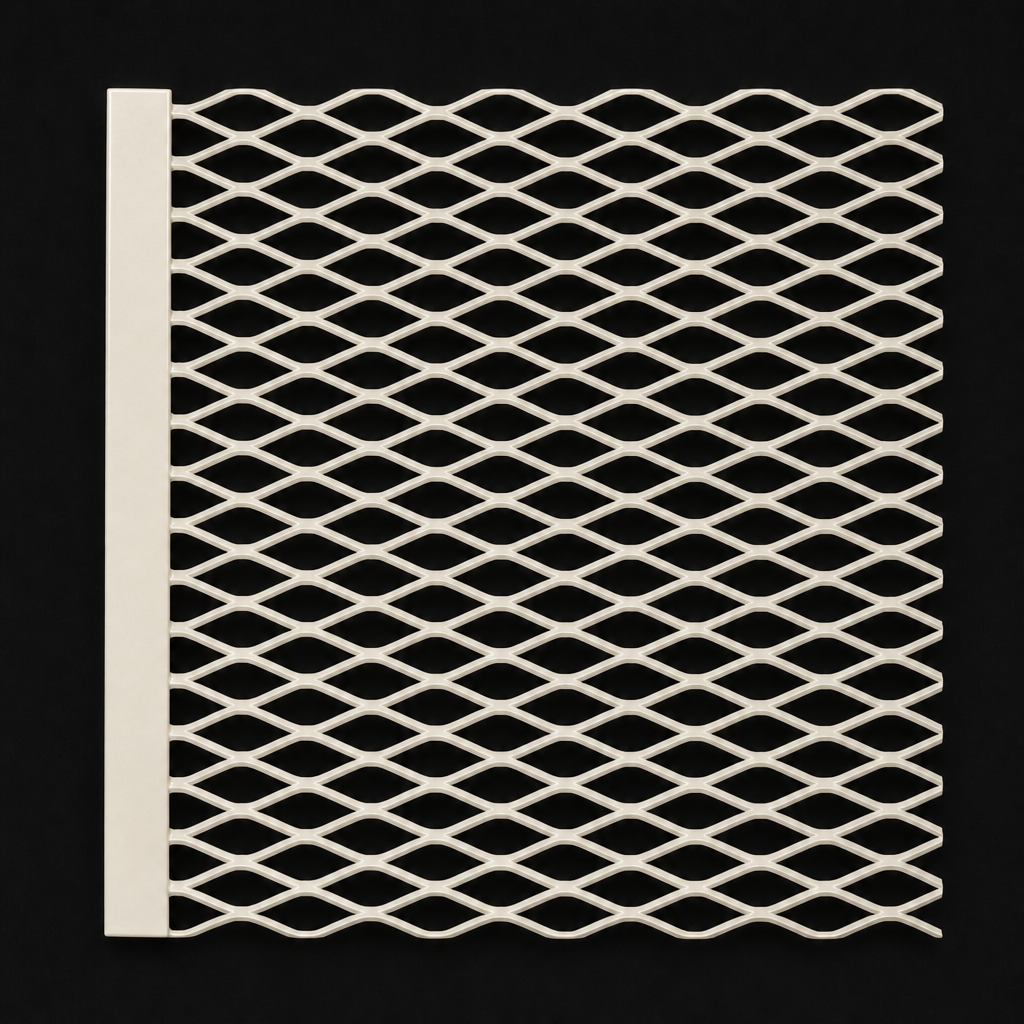

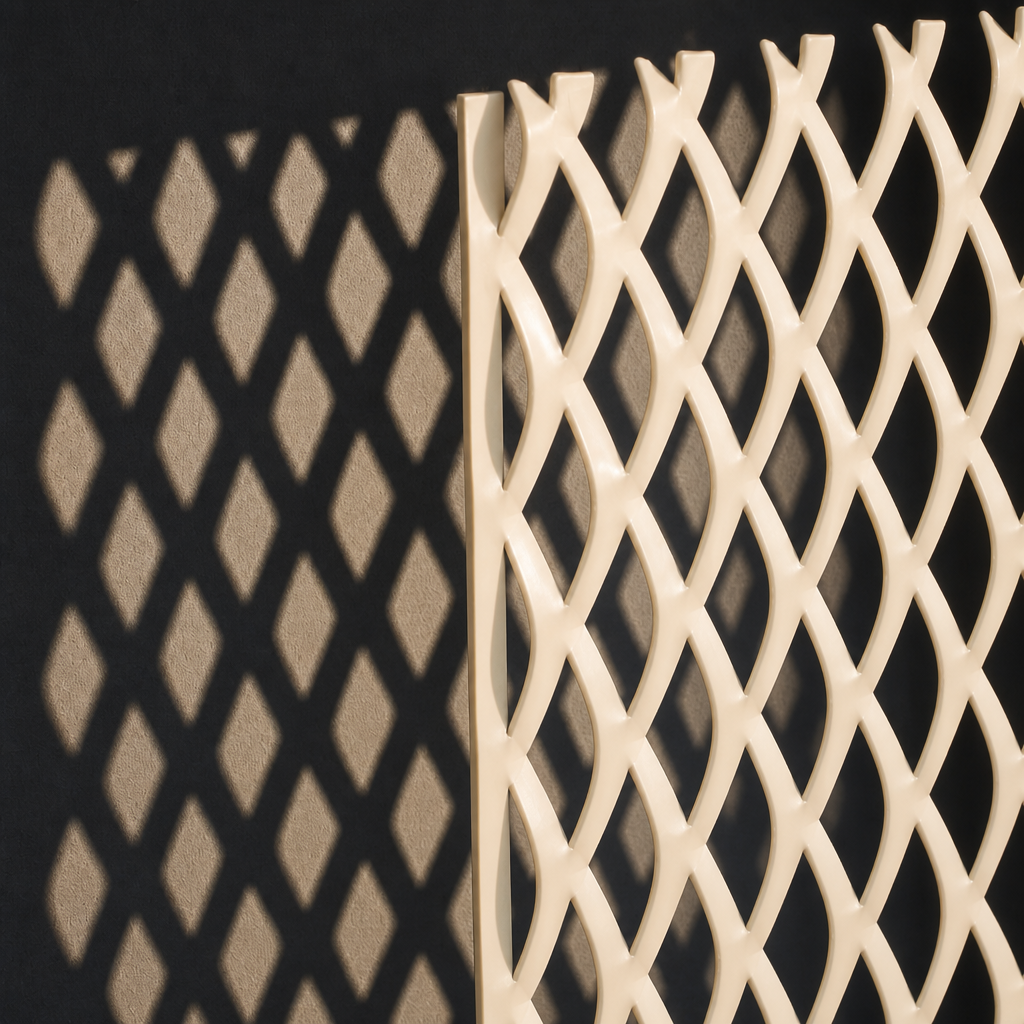

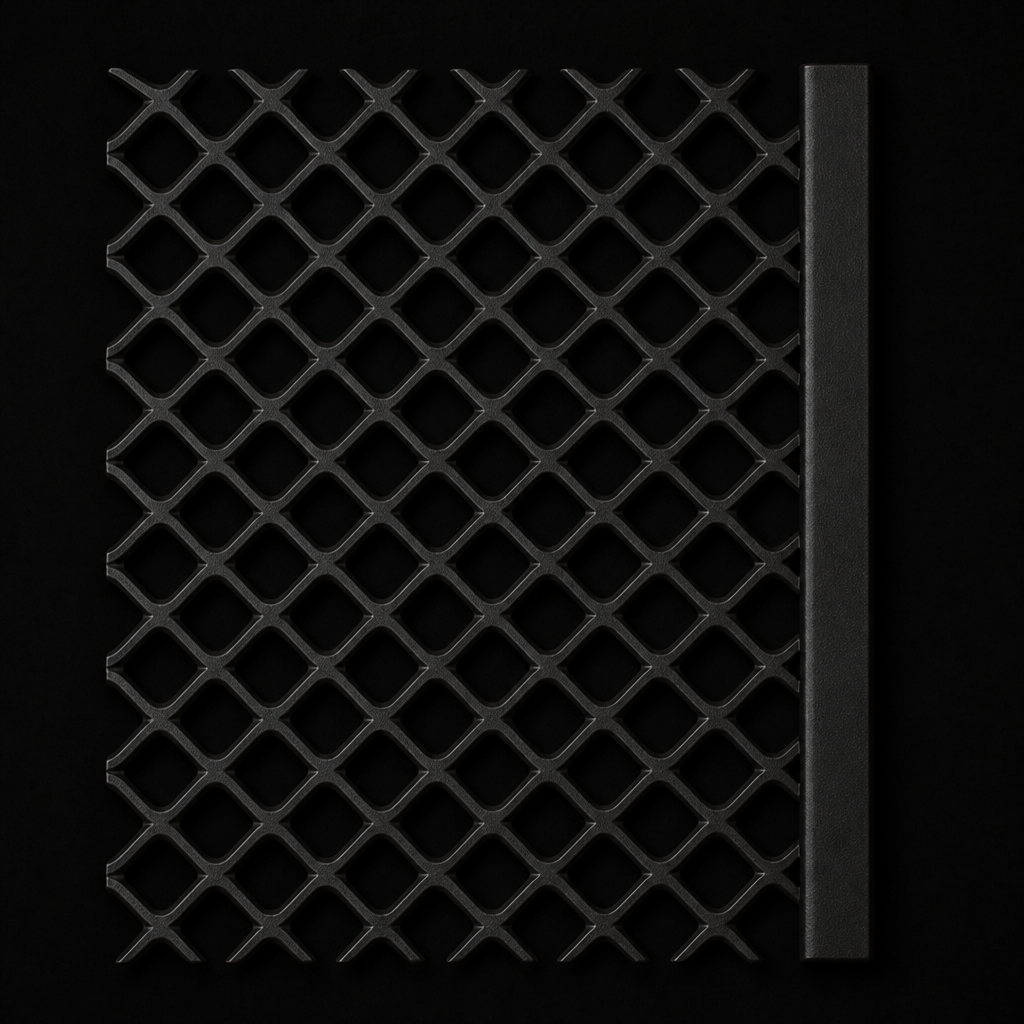

Phoebe
SWD 40 mm · LWD 15 mm · Strand 3 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

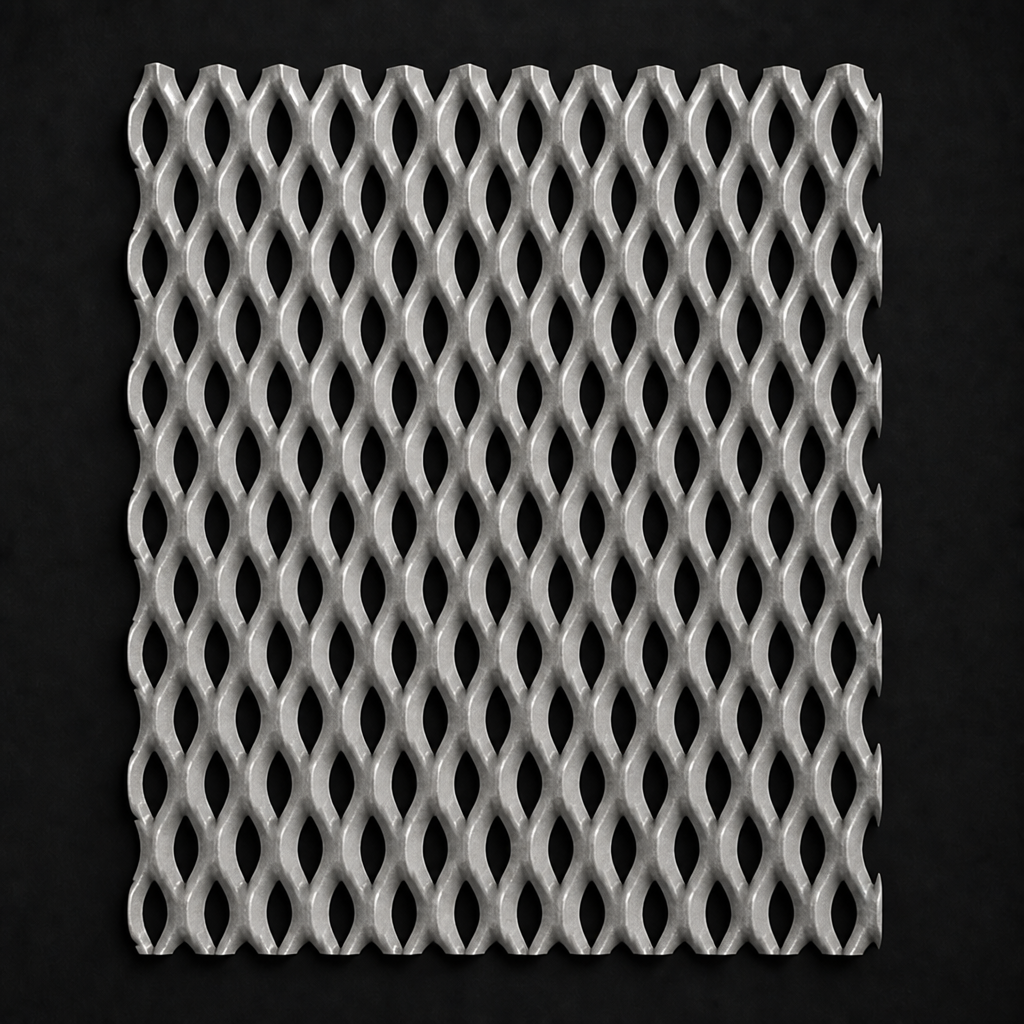

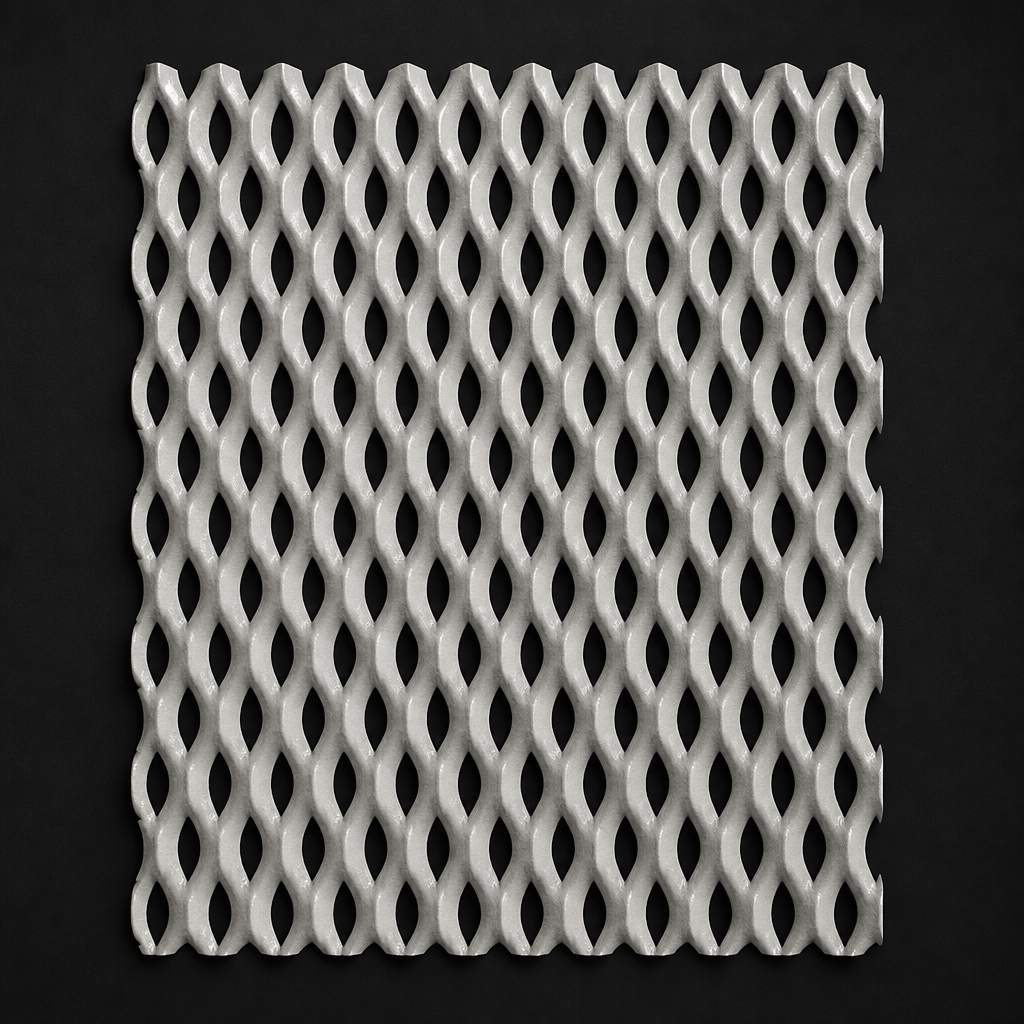

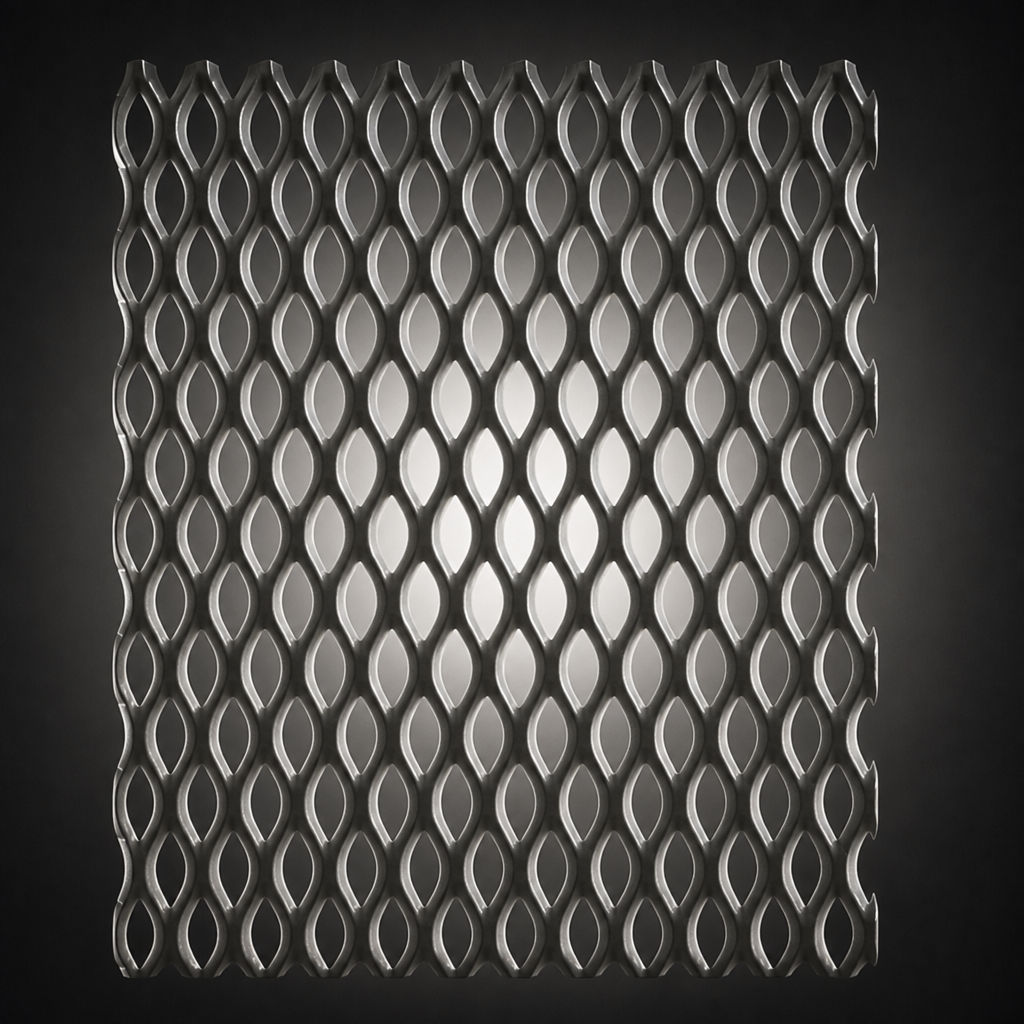

Rhea
SWD 40 mm · LWD 15 mm · Strand 12 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

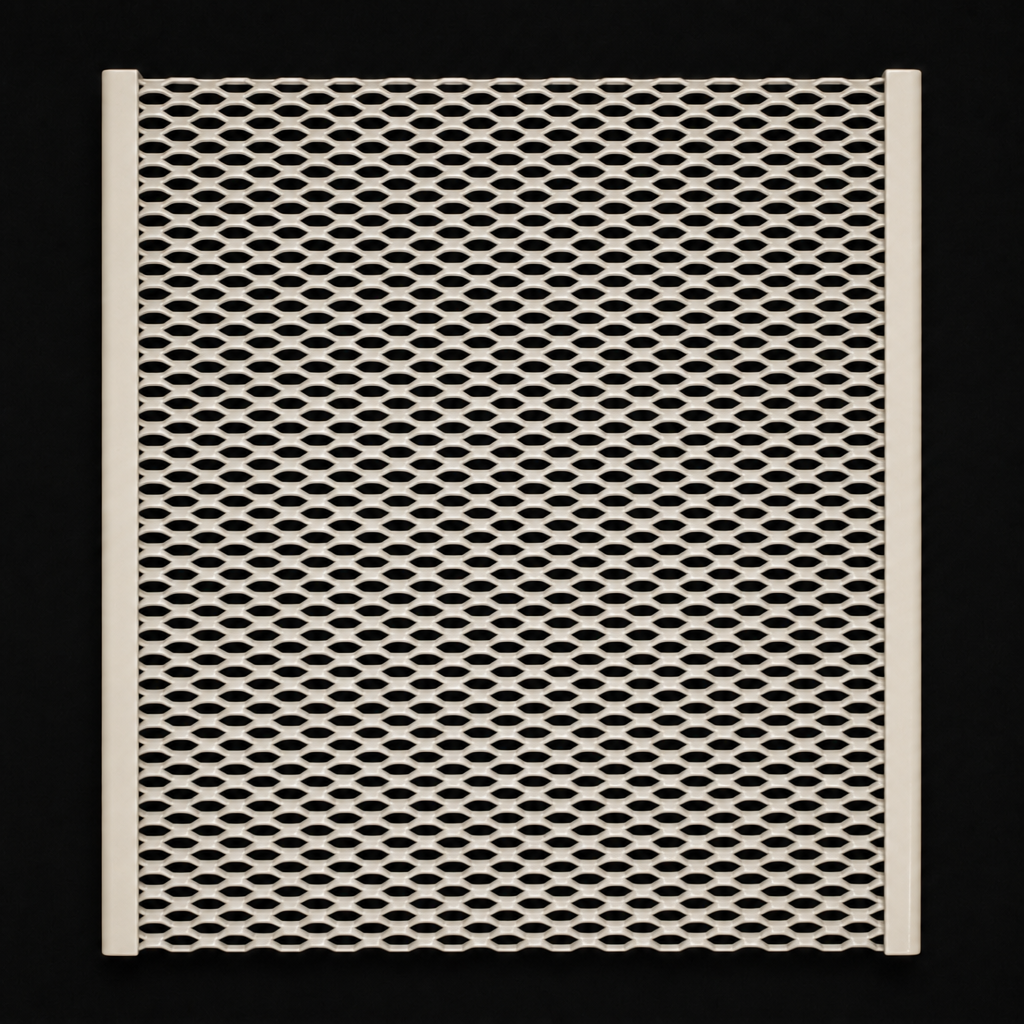

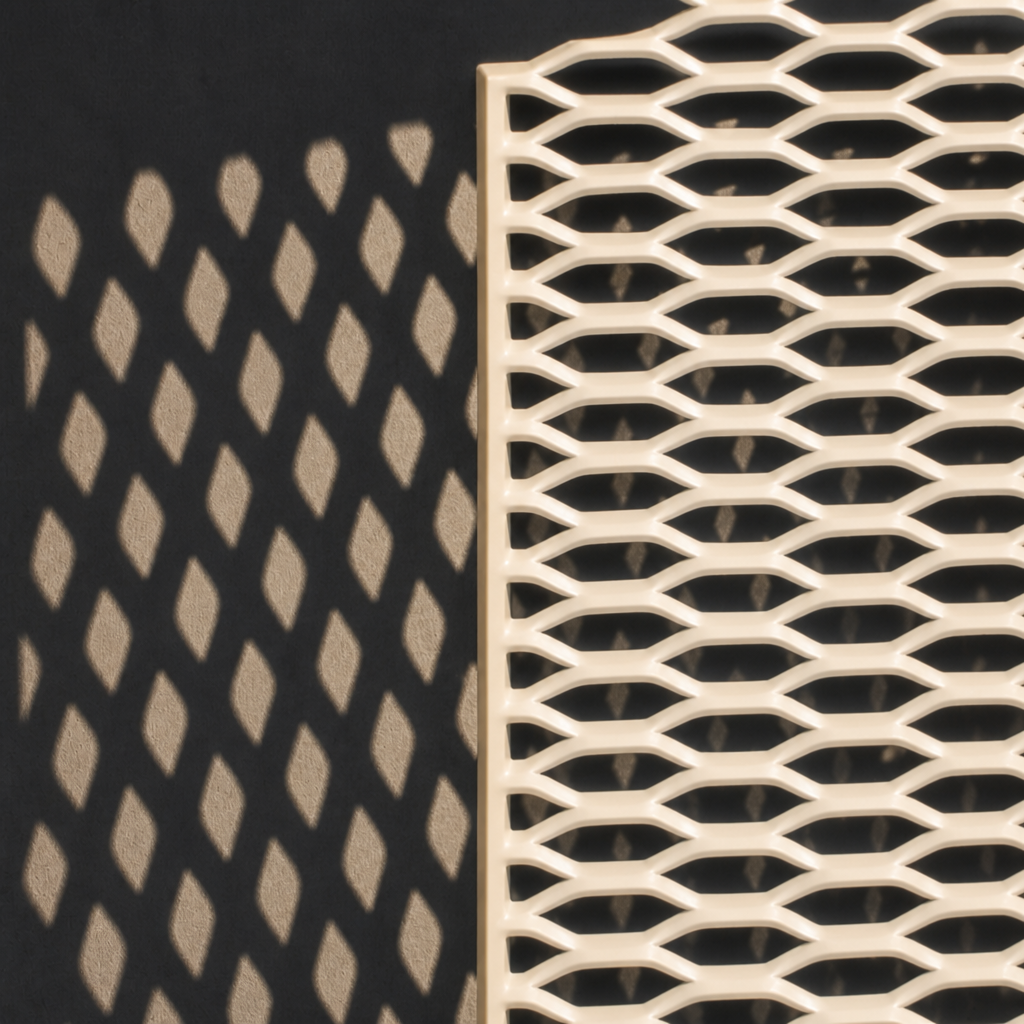

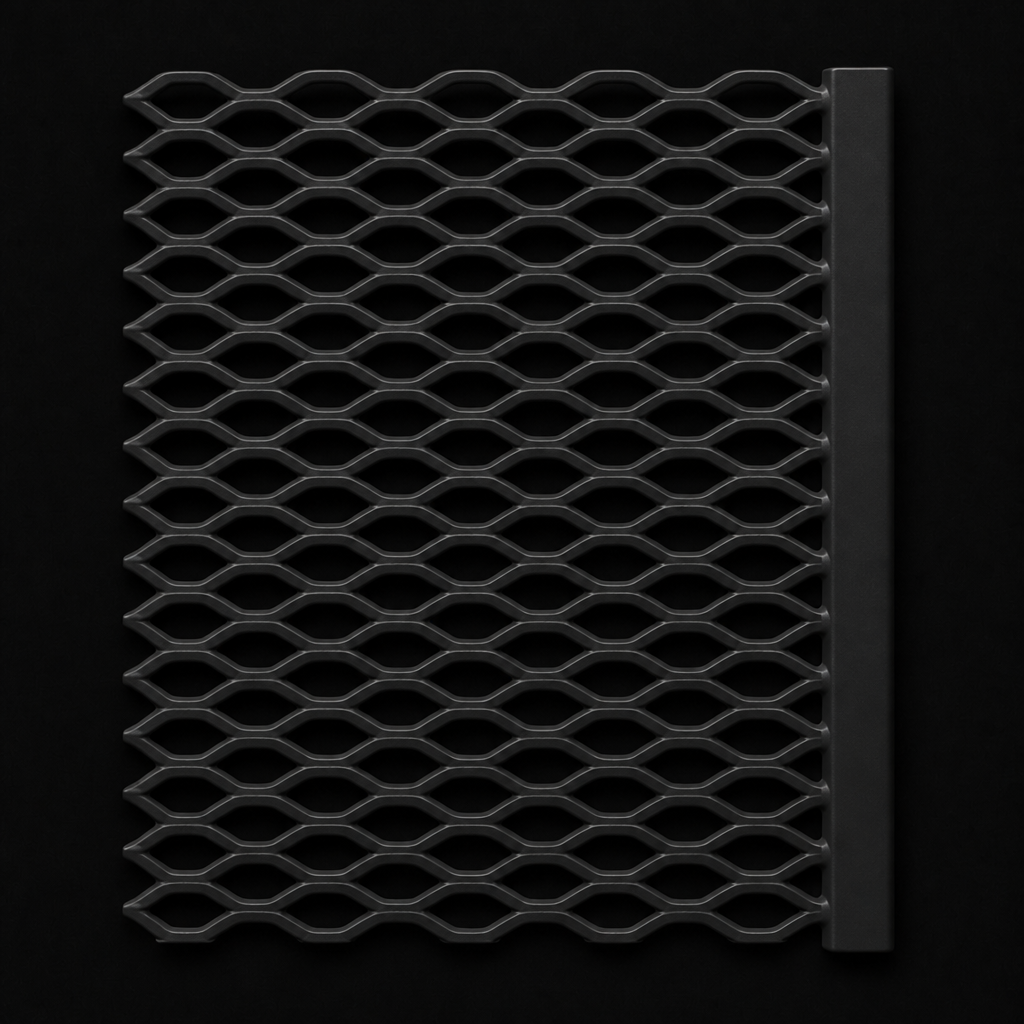

Telesto
SWD 25 mm · LWD 7 mm · Strand 5 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

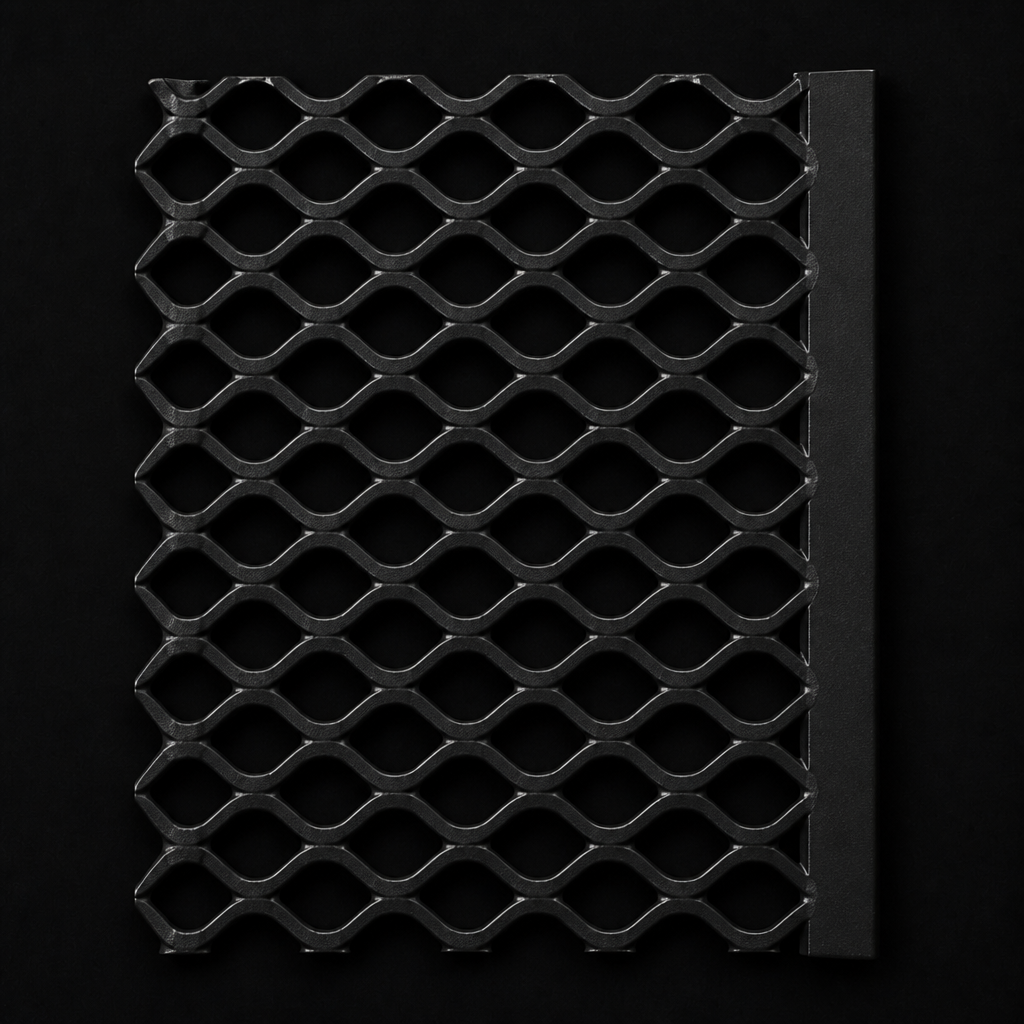

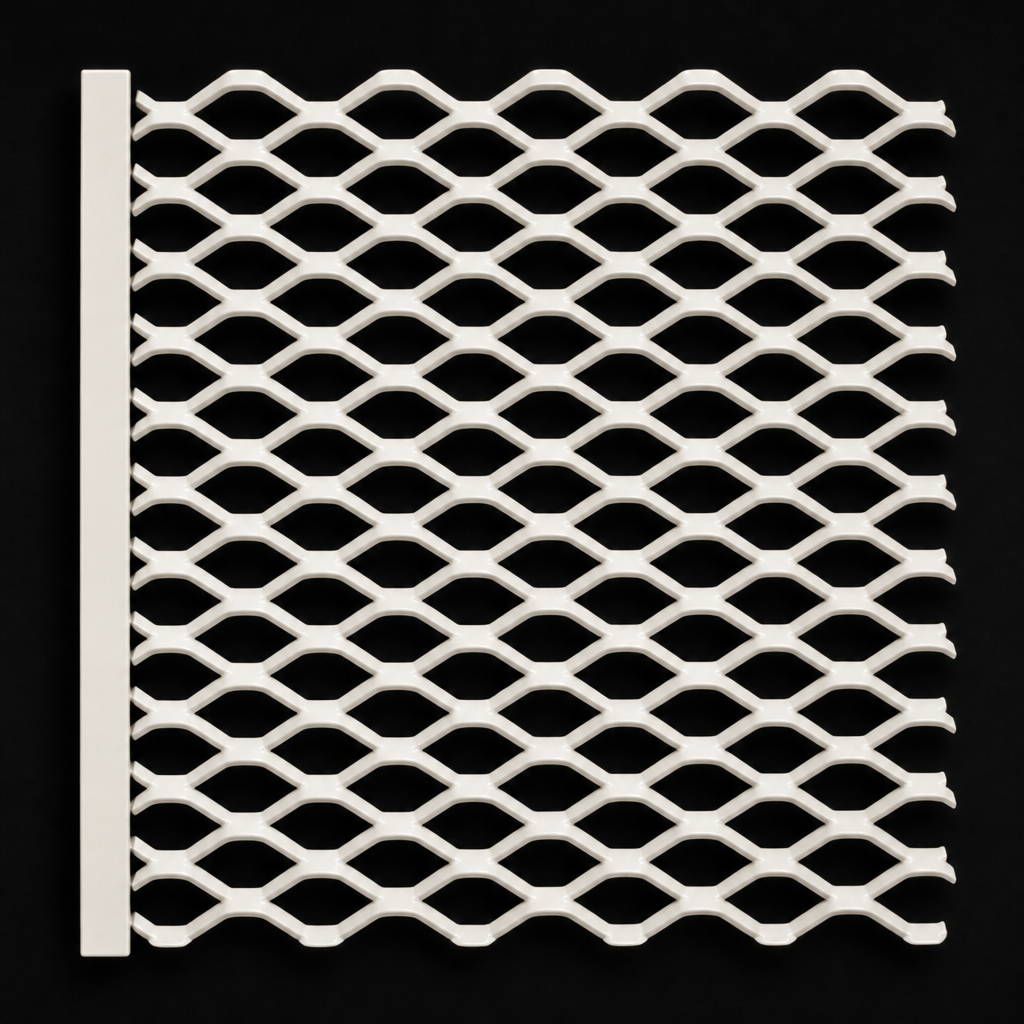

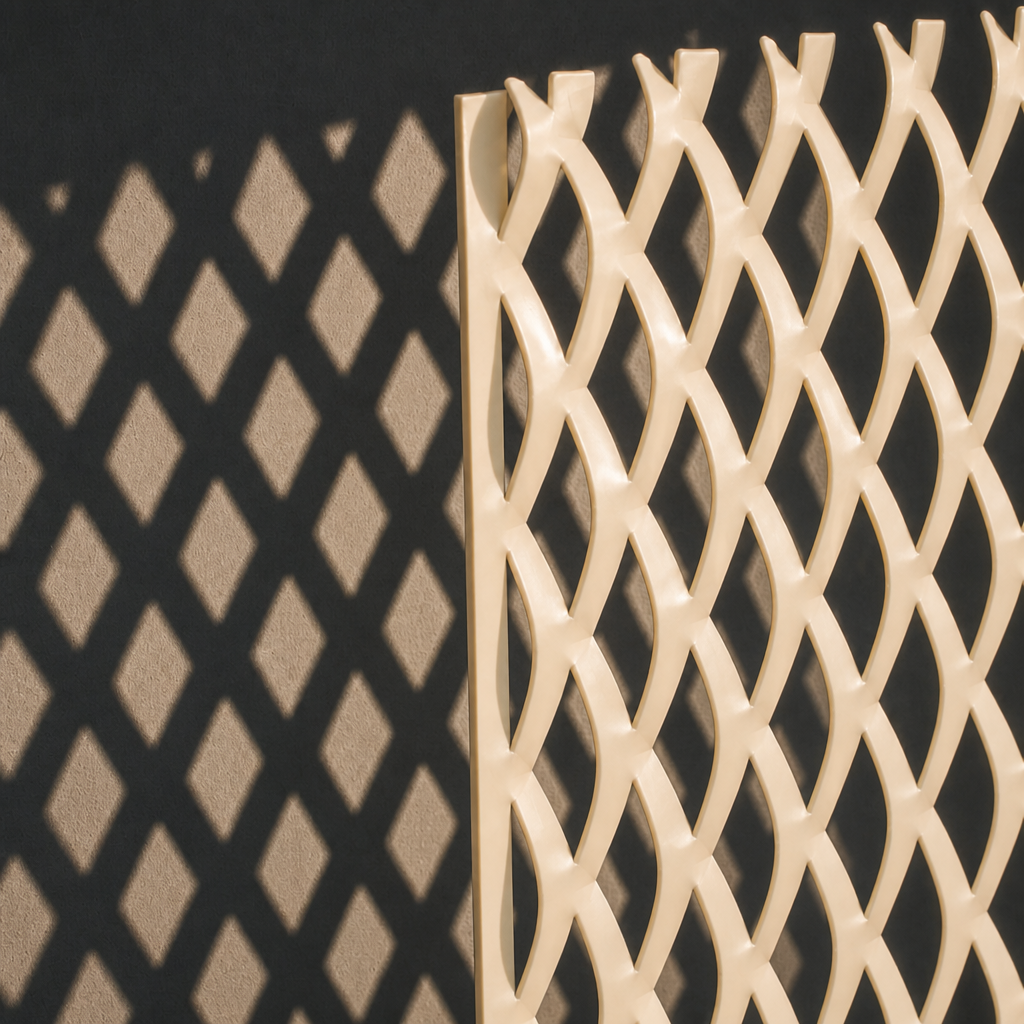

Tethys
SWD 25 mm · LWD 15 mm · Strand 8 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

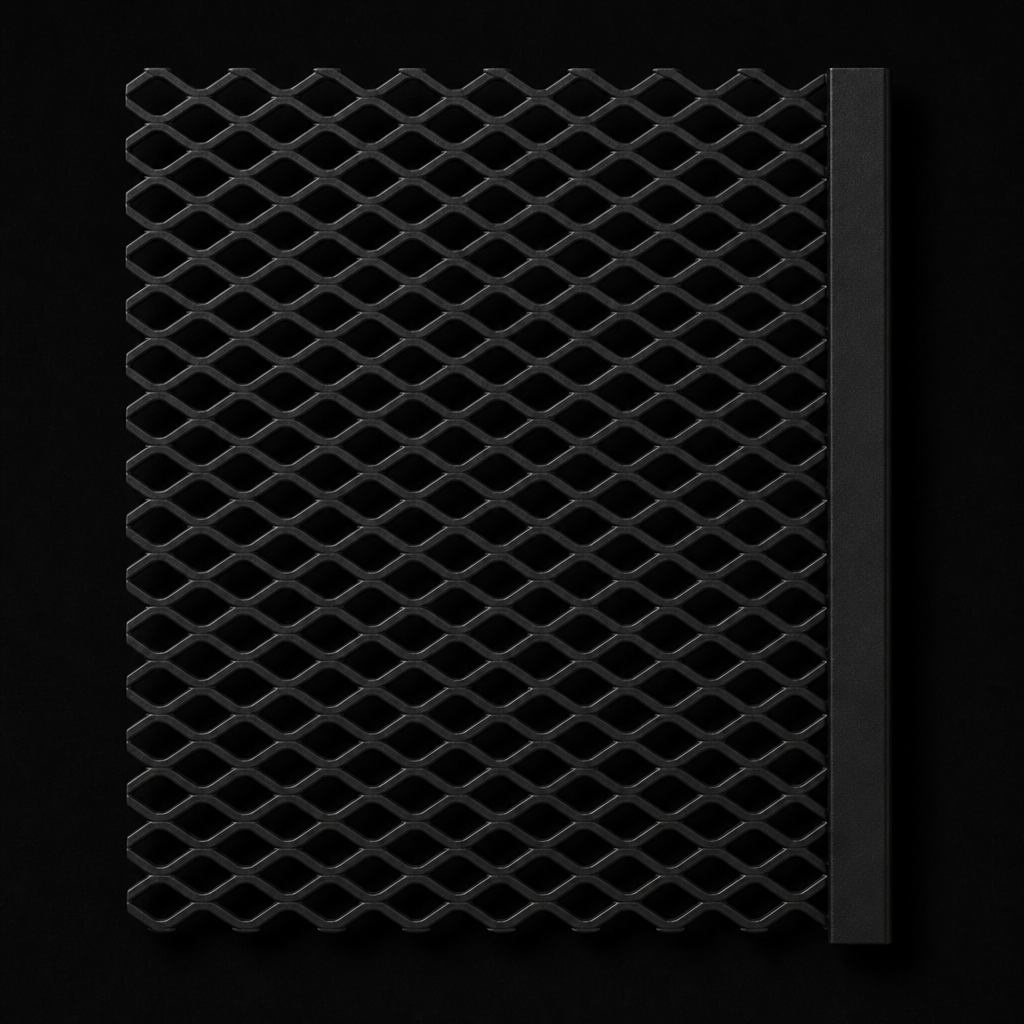

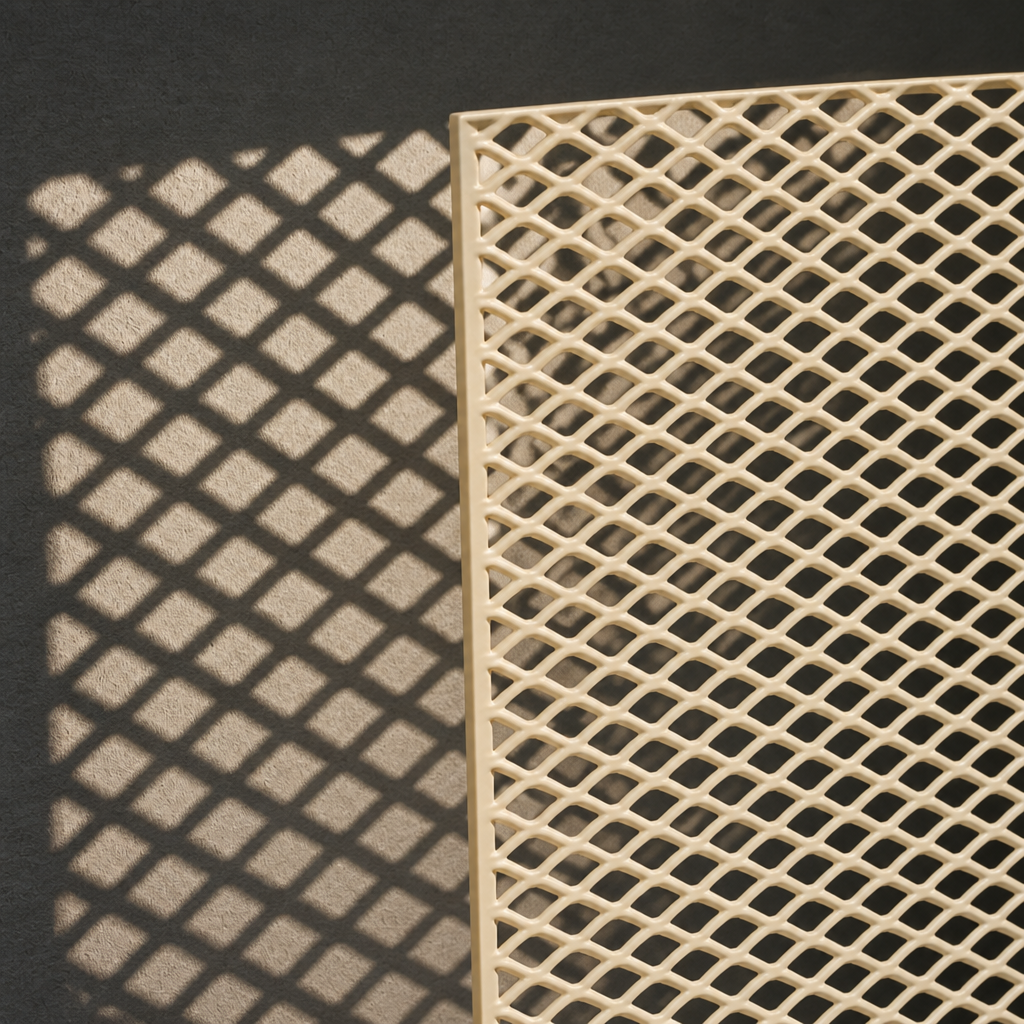

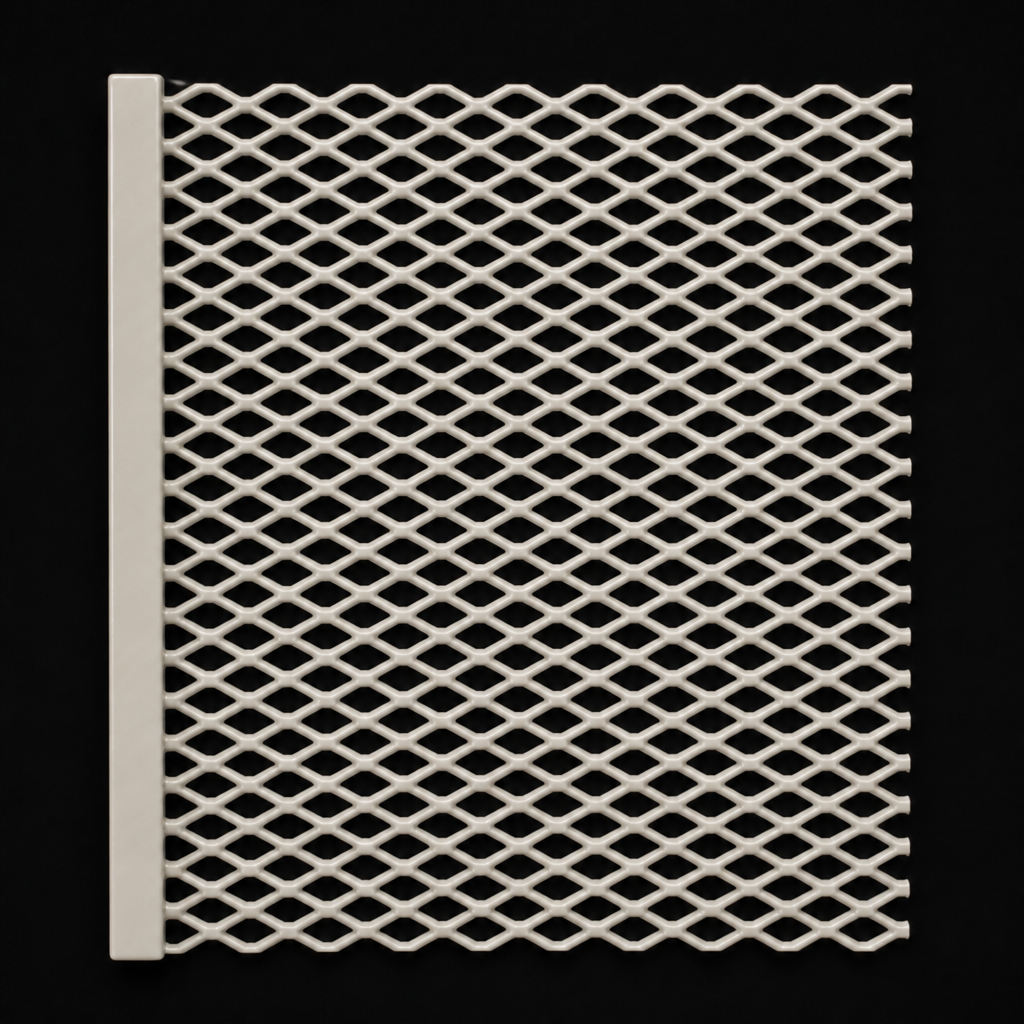

Titan
SWD 18 mm · LWD 9 mm · Strand 4 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel

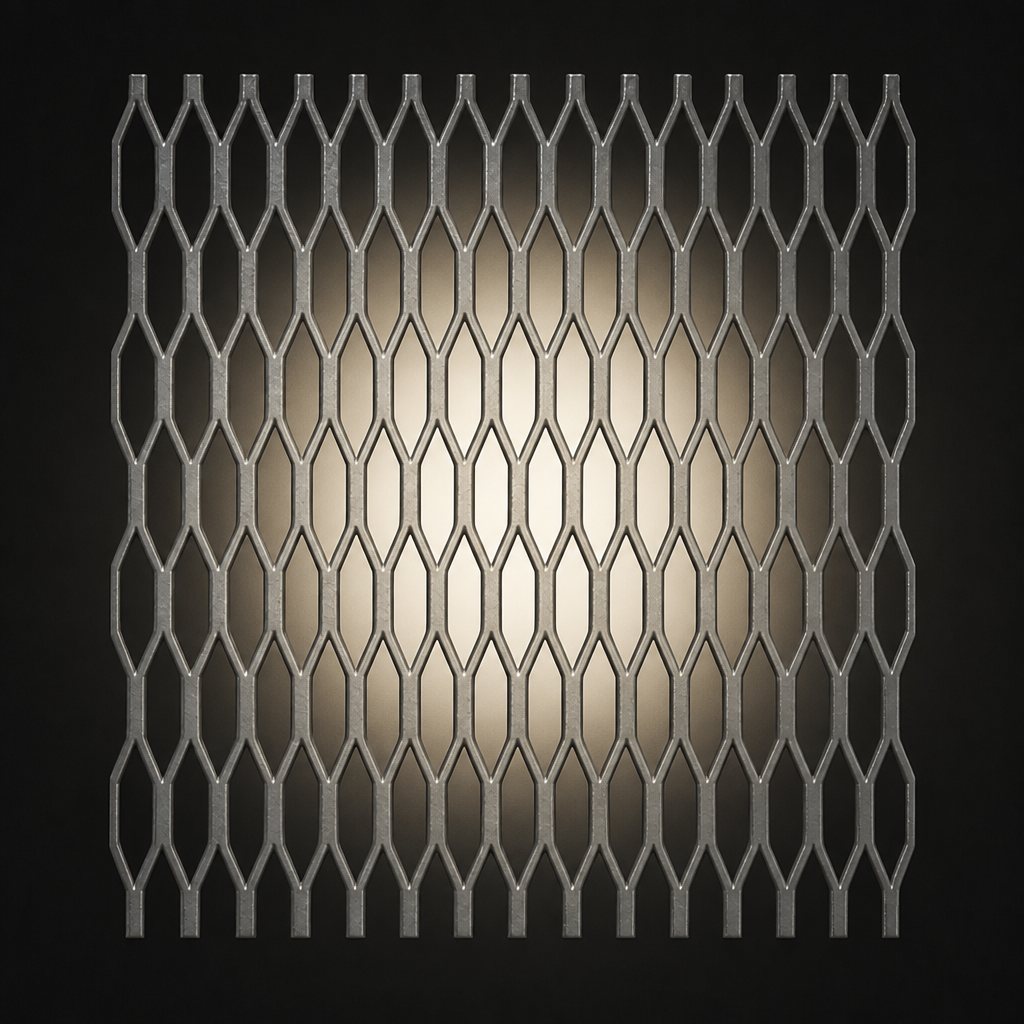

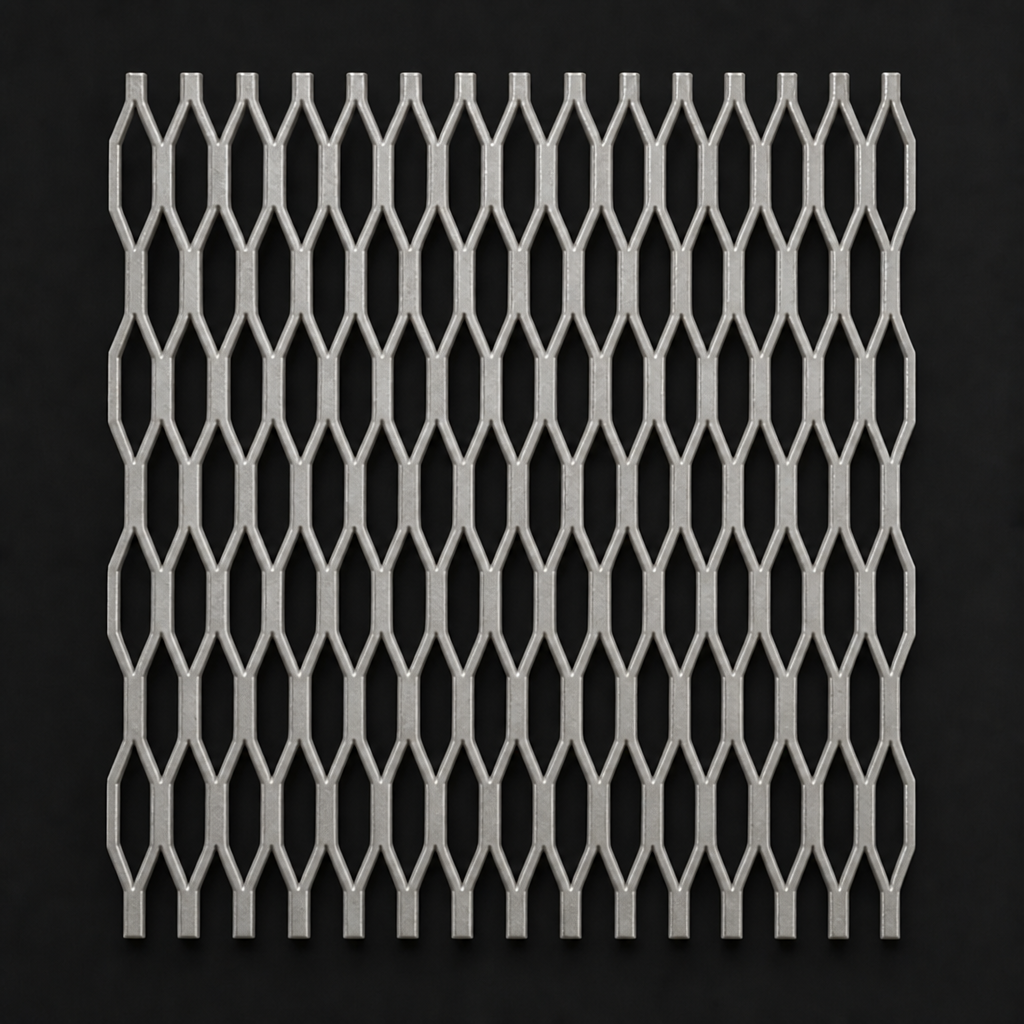

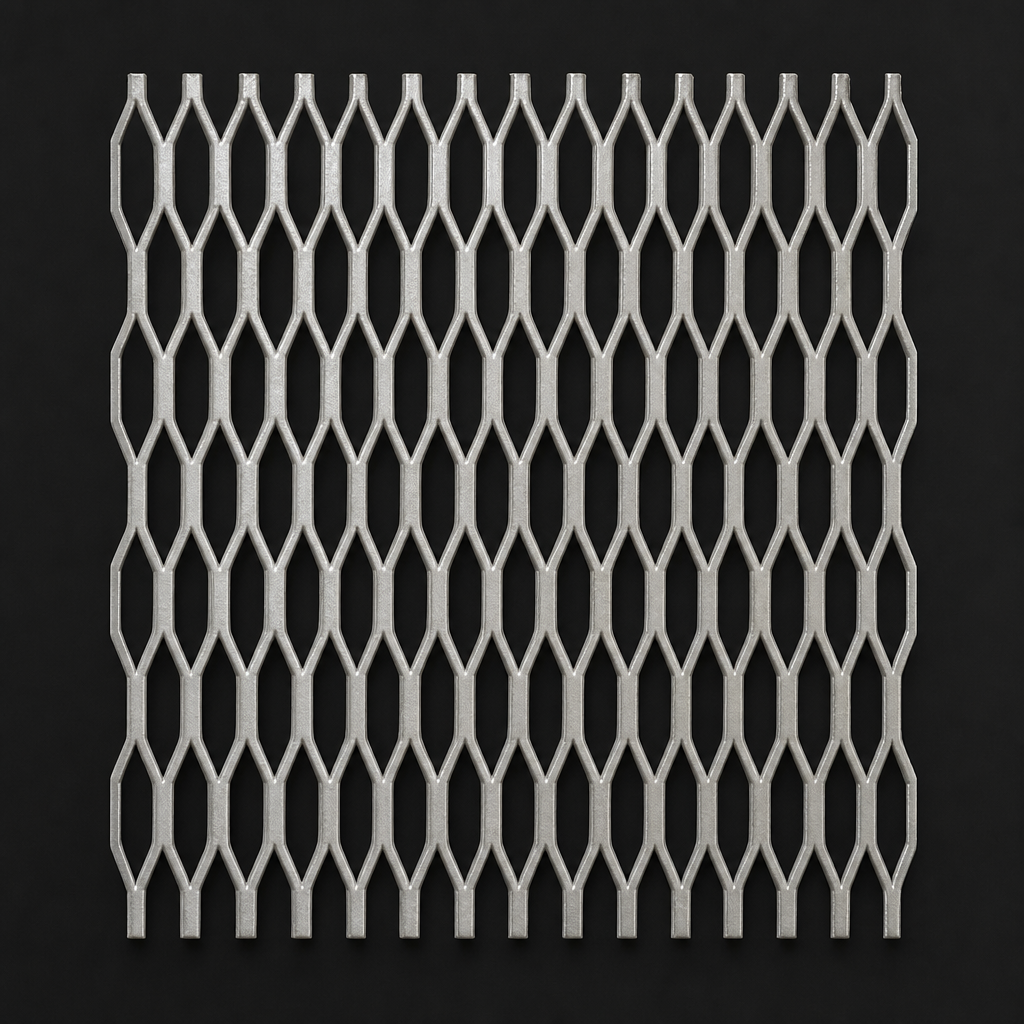

Triton
SWD 75 mm · LWD 15 mm · Strand 8 mm
Material types
- Mild Steel
- Aluminium
- Stainless Steel
Expanded Mesh — buying guide
Size charts first, then more buying notes.
Stock patterns
Each design keeps its source name. Specs below are from our pattern data sheets.
| Design | SWD (mm) | LWD (mm) | Strand (mm) |
|---|---|---|---|
| Ariel | 115 | 55 | 20 |
| Atlas | 75 | 25 | 20 |
| Calypso | 180 | 55 | 43 |
| Dione | 115 | 55 | 20 |
| Europa | 65 | 30 | 20 |
| Helene | 40 | 15 | 4 |
| Janus | 80 | 15 | 5 |
| Miranda | 40 | 20 | 15 |
| Pan | 25 | 15 | 12 |
| Phoebe | 40 | 15 | 3 |
| Rhea | 40 | 15 | 12 |
| Telesto | 25 | 7 | 5 |
| Tethys | 25 | 15 | 8 |
| Titan | 18 | 9 | 4 |
| Triton | 75 | 15 | 8 |
Expanded metal mesh is slit and stretched from a solid sheet — no welds. The diamond openings are defined by SWD (short way of diamond), LWD (long way of diamond) and strand width. Garg Industrial Mesh supplies named stock patterns from Sector 9, Noida across Delhi NCR.
Use these three numbers when ordering. They come from our measured stock patterns — not invented sizes.
- SWD — Short Way of Diamond: the shorter centre-to-centre distance across the diamond (mm)
- LWD — Long Way of Diamond: the longer centre-to-centre distance across the diamond (mm)
- Strand width — width of the metal strand forming the diamond edge (mm)
- Also state thickness, sheet size, material (MS / aluminium / SS) and quantity on the RFQ
Expanded mesh is available in Mild Steel, Aluminium and Stainless Steel. Finish (mill, painted, powder-coated) on request.
- Mild Steel — economy industrial duty
- Aluminium — lightweight facades and grilles
- Stainless Steel — corrosive / long outdoor life
Common questions for expanded mesh orders.
Name the design (e.g. Ariel), confirm SWD / LWD / strand from our table, then material, thickness, sheet size and quantity.
Yes — from Sector 9, Noida across Noida, Greater Noida, Delhi, Ghaziabad, Faridabad and Gurugram.
